Product Model
756-1404/060-200
Selling Points
- 1High Chemical Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Suitable for Drag Chains: Designed for use in drag chains with high resistance to mechanical stress.
- 3Halogen-Free Insulation: Features halogen-free PE insulation for safety and durability.

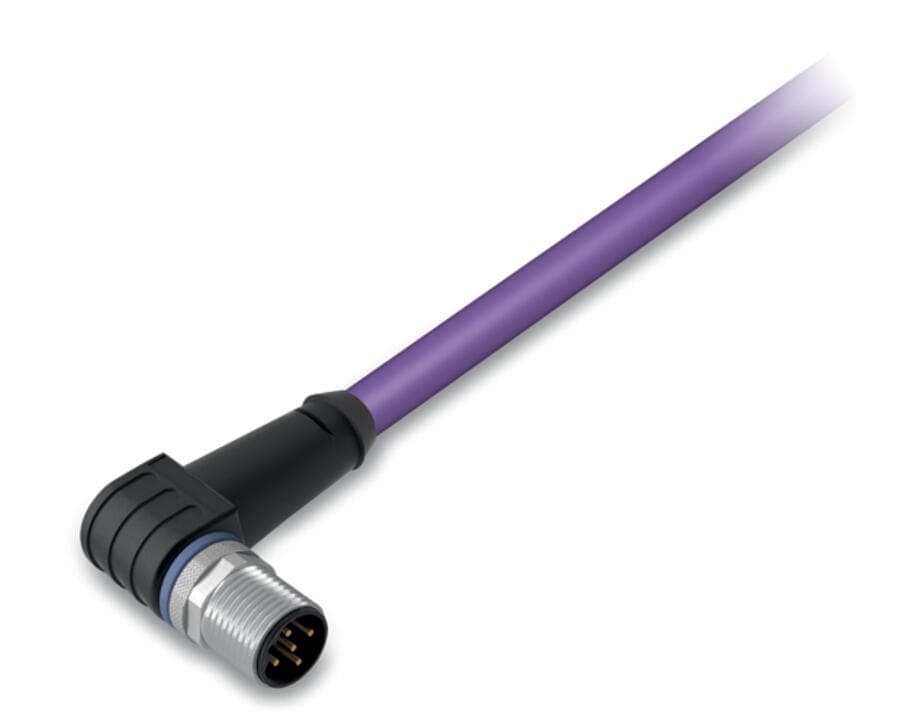

- 4Angled M12 Plug: Equipped with an angled M12A plug for easy connectivity.
- 5Operates in Extreme Temperatures: Functions between -40°C and +80°C, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug - free end | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Cable length | 20m | Communication/fieldbus | CANopen |
Communication/fieldbus (2) | DeviceNet | Operating voltage | ≤ 300?V |
Operating current | 4A | Rated surge voltage | 2?kV |
Contact resistance | 10mΩ | Insulation resistance | ≥ 2 x 108Ω/km |
Conductor resistance | ≤ 57 Ω/km (22 AWG) + ≤ 79 Ω/km (24 AWG) | Bending radius | 5 x cable diameter (min.) |
Bending cycles | 5Mio. | Drag chain capability | yes |
Type code | L-02YC11Y 2xAWG24 + 2xAWG22/1.4-120 VI FRNC, shielded | Shield | tinned copper braid, optical coverage approx. 85 % |
Conductor configuration | Bare copper wire (19 x 0.125 mm) | Conductor insulation | Halogen-free PE |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 1.3g | Color | violet |
Ambient (operating) temperature (dynamic) | -40 … +80 °C | Ambient (operating) temperature (static) | -40 … +80 °C |
Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
ETIM 9.0 | EC002599 | ETIM 8.0 | EC002599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454640958 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
