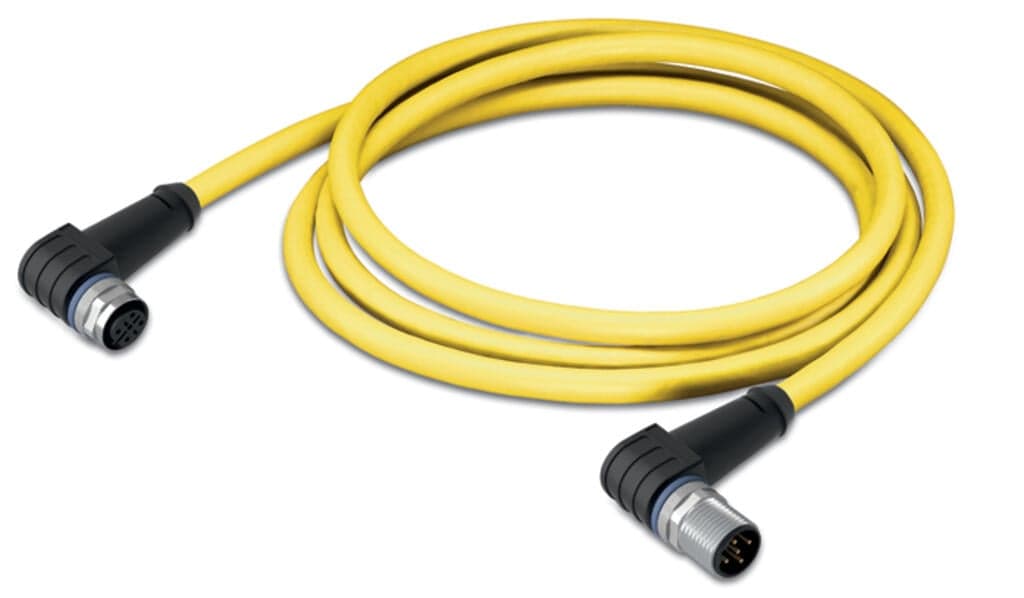

Product Model
756-1506/060-010
Selling Points
- 1Halogen-free and CFC-free: Ensures safety and environmental compliance.
- 2Suitable for Drag Chains: Designed for use in harsh environments.
- 3High Resistance to Microbes and Chemicals: Durable against various contaminants.
- 4PUR Material: Provides excellent insulation and durability.
- 5Angled M12B Socket and Plug: Easy installation and reduced stress on connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Cable connection direction to mating direction (2) | 90° |
Connector interface coding (cable/adapter) 1 1 | B-coded | Connector interface coding (cable/adapter) 2 1 | B-coded |
Cable length | 1m | PLC manufacturer | WAGO |
Operating voltage | 60 V | Operating current | 4A |
Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
Insulation resistance | ≥5 x 109Ω | Conductor resistance | ≤ 130 Ω/km |
Bending radius | 5 x cable diameter (min.) | Bending cycles | 5Mio. |
Drag chain capability | yes | Type code | KS-6Y3GC11Y 4x2xAWG26/19 shielded |
Shield | Tinned copper braid, optical coverage approx. 90 % | Conductor configuration | Bare copper wire (AWG 26/19) |
Conductor insulation | FEP; Core ?: 1.0 mm (max.) | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material | CuZn | Contact plating | CuNi/Au |
Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Mating cycles (max.) | 100 |
Tightening torque | 1?Nm | Weight | 10g |
Color | yellow | Ambient (operating) temperature (dynamic) | 0 … +50 °C |
Ambient (operating) temperature (static) | -30 … +85 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC000237 |
ETIM 8.0 | EC000237 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821130451 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a7437078-8bb8-49d3-aebf-0efe05a55817 |
SCIP notification number (Belgium) | 8b1af97e-d32d-449b-a069-370ccbf0cec5 | SCIP notification number (Bulgaria) | 3d48a45c-6ee1-4e23-9f4b-c5df955c1d37 |
SCIP notification number (Czech Republic) | daa4fb8a-d179-47d0-9d7c-a35cedf2af5e | SCIP notification number (Denmark) | a93af5c5-7e0d-47ea-b29c-4a432ab05ad4 |
SCIP notification number (Finland) | 7e9c3826-c684-4c74-9e9d-22e6d0d9576e | SCIP notification number (France) | e668f373-bbb5-4597-8bb1-f013df71a6c0 |
SCIP notification number (Germany) | 8cc8584f-54f7-40dd-b5a9-0bc6d77ca11e | SCIP notification number (Hungary) | 94f20d36-6cdc-466d-abe2-2c15a1d08d59 |
SCIP notification number (Italy) | 4b241972-44e1-4bc9-8398-7d1928a0dad9 | SCIP notification number (Netherlands) | 2ee53b73-b008-4eb3-bc6f-2a02a6eabd86 |
SCIP notification number (Poland) | 90cdcab0-22ef-4870-8d8c-dcfbf470145f | SCIP notification number (Romania) | 3cd418ba-1c18-435d-9fab-cedda837ea64 |
SCIP notification number (Sweden) | 58b2561d-eb88-4a2c-8b9e-c0f5adea762a |
Specifications may be subject to change without notice
