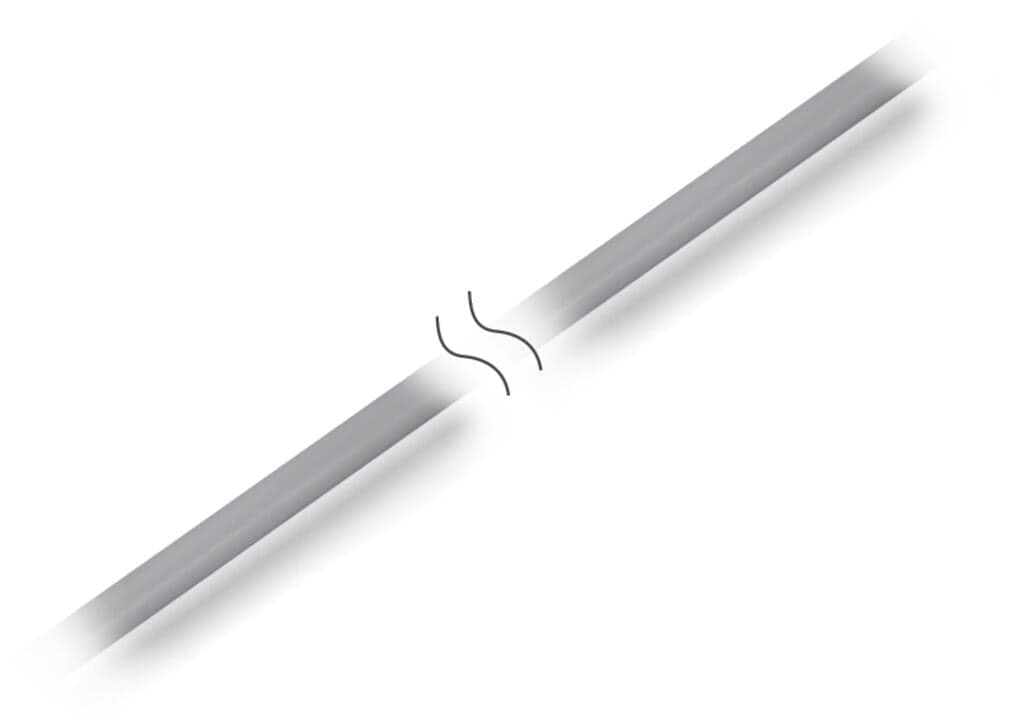

WAGO 756-3100/000-1000 Power Supply Cable

Selling Points

1High-quality insulation: PUR, halogen-free, and silicon-free for enhanced safety and durability.
2Wide operating range: Suitable for operating temperatures from -30°C to +80°C and surge voltage up to 2.5 kV.
3Versatile usage: Designed for drag chains and offers good resistance to microbes, hydrolysis, oil, chemicals, and UV radiation.
4Compliance and certifications: UL / CSA certified and RoHS compliant, ensuring environmental responsibility.
5Reliable performance: 4-conductor multi-conductor cable with a conductor resistance of 40 x 0.15 mm bare copper wire.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Connection type	free end - free end	Number of poles	4
Cable length	100m	PLC manufacturer	WAGO
Operating voltage	250?VAC/DC	Operating current	4A
Rated surge voltage	2.5?kV	Contact resistance	10mΩ
Insulation resistance	>109Ω	Conductor resistance	≤ 26 Ω/km
Bending radius	10 x cable diameter (min.) for flexible application	Bending cycles	4Mio.
Drag chain capability	yes	Type code	Lif9YH-11YH 4x0.75 mm2
Conductor configuration	Bare copper wire (40 x 0.15 mm)	Conductor insulation	PP9Y (halogen-free)
Wire colors	brown, white, blue, black	Weight	10g
Ambient (operating) temperature (dynamic)	-30 … +80 °C	Ambient (operating) temperature (static)	-30 … +80 °C
Protection type	IP67	Pollution degree	3/2 per IEC 60664-1
eCl@ss 10.0	27-06-18-01	eCl@ss 9.0	27-06-18-01
ETIM 9.0	EC003249	ETIM 8.0	EC003249
ECCN	NO US CLASSIFICATION	PU (SPU)	1?pcs
Packaging type	box	Country of origin	DE
GTIN	4045454772321	Customs tariff number	8544429090
End of Sale	2024-05-01	End of Production	2024-05-15
End of Delivery	2024-06-01	End of Service and Repair	2025-06-01
RoHS Compliance Status	Compliant,No Exemption

Specifications may be subject to change without notice
