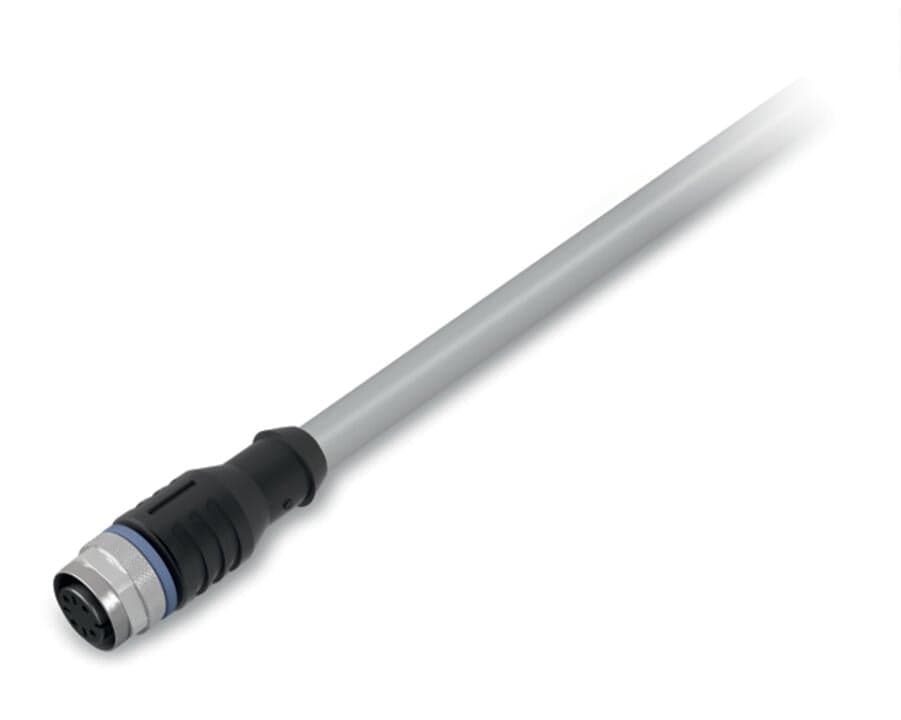

Product Model
756-3101/040-050
Selling Points
- 1Ensures safety and reduces environmental impact.
- 2Provides robust protection against dust and water.
- 310x cable diameter for easy installation in tight spaces.
- 4Suitable for use in harsh environments with high chemical exposure.
- 5Meets international safety standards for electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - free end | Number of poles | 4 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Cable length | 5m | PLC manufacturer | WAGO |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >109Ω | Conductor resistance | ≤ 26 Ω/km |
Bending radius | 10 x cable diameter (min.) for flexible application | Bending cycles | 4Mio. |
Drag chain capability | yes | Type code | Lif9YH-11YH 4x0.75 mm2 |
Conductor configuration | Bare copper wire (40 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 10g | Ambient (operating) temperature (dynamic) | -30 … +80 °C |
Ambient (operating) temperature (static) | -30 … +80 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454772390 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a45b72c3-ed00-4224-8453-b75559569b23 |
SCIP notification number (Belgium) | 8c2d9cd4-f5cb-4eb6-93f7-a8a8978f2f26 | SCIP notification number (Bulgaria) | 701b6abd-9bdc-4ca2-a9e7-b954519753f0 |
SCIP notification number (Czech Republic) | 588193ec-9052-4ca0-8e92-69facc1f1be3 | SCIP notification number (Denmark) | 131df36b-2e66-453f-b6c9-e3b70174d7f9 |
SCIP notification number (Finland) | 2d7b3bfc-f41d-4db5-9dec-573c8e721dc8 | SCIP notification number (France) | 78ce4a90-b34a-4a3f-8346-03ae90fc373a |
SCIP notification number (Germany) | d17937f2-47dc-4e42-8273-a407abc7e819 | SCIP notification number (Hungary) | a1da659b-62bf-4fca-9b8e-4743905a2e42 |
SCIP notification number (Italy) | cb04d5a5-11c7-4391-b2f9-94227e948f8b | SCIP notification number (Netherlands) | 69ac8c90-a558-45e2-bd90-5c3ef5689d61 |
SCIP notification number (Poland) | fc47aab0-89a3-43ef-be87-5bba4899ba1a | SCIP notification number (Romania) | 89873592-3d99-4baf-a742-f8707953211d |
SCIP notification number (Sweden) | aeeafde3-a4d6-4f8e-a062-53e76b71f756 |
Specifications may be subject to change without notice
