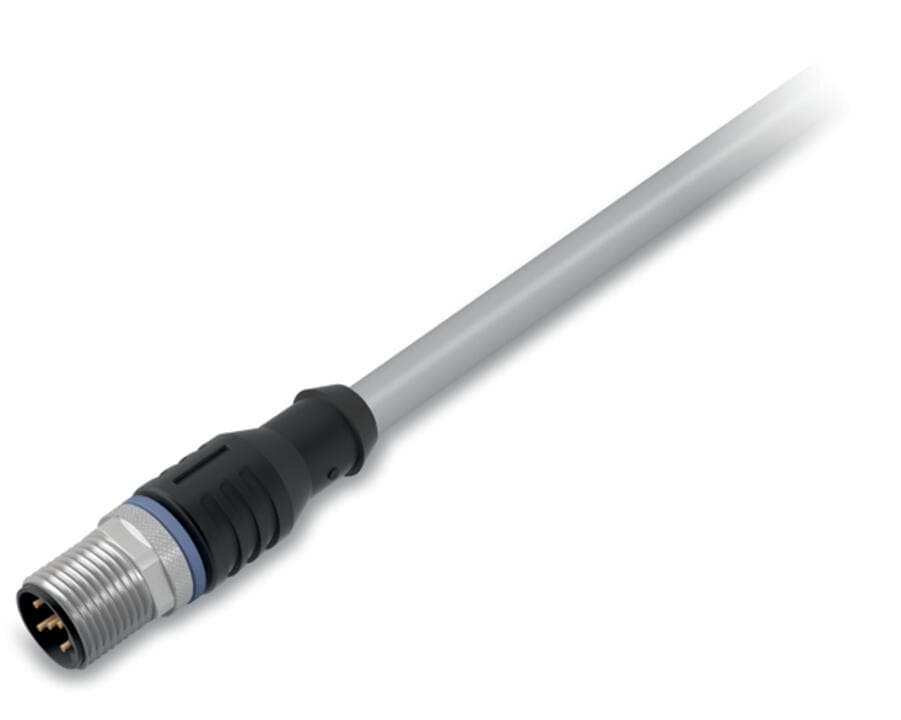

Product Model
756-3103/040-020
Selling Points
- 1Flexible Application: Designed with a 10x bending radius for flexible use.
- 2Halogen-Free Insulation: PP9Y insulation ensures safety and durability.
- 3M12 Plug Connection: Easy and secure connection with an M12 plug.
- 4High Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV.
- 5Compact Length: Available in a compact 2-meter length.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug - free end | Number of poles | 4 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Cable length | 2m | PLC manufacturer | WAGO |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >109Ω | Conductor resistance | ≤ 26 Ω/km |
Bending radius | 10 x cable diameter (min.) for flexible application | Bending cycles | 4Mio. |
Drag chain capability | yes | Type code | Lif9YH-11YH 4x0.75 mm2 |
Conductor configuration | Bare copper wire (40 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 10g | Ambient (operating) temperature (dynamic) | -30 … +80 °C |
Ambient (operating) temperature (static) | -30 … +80 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454772482 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 39448879-2e2b-457f-b143-0ad629f8a4a5 |
SCIP notification number (Belgium) | ef81954a-d7a8-4736-be36-cf1ec6bcdc40 | SCIP notification number (Bulgaria) | 9ccdb63d-abd6-4a60-8343-99f5e7cb38ab |
SCIP notification number (Czech Republic) | 2c66eb69-d2f7-456e-83f4-20a8f9c6865e | SCIP notification number (Denmark) | 0bf1f335-1757-4954-831c-58b156618f7c |
SCIP notification number (Finland) | 88a95e17-c918-40ac-b88a-4ea3da8fd140 | SCIP notification number (France) | a2e0c2e8-2ee0-4f1b-b72e-12e1c26a6b8a |
SCIP notification number (Germany) | 58f63f02-f237-43d6-8a32-4d3a0027fe69 | SCIP notification number (Hungary) | 8faa9cab-888e-482f-a790-dd09c9b1fe3d |
SCIP notification number (Italy) | 0f9b5e6e-b8a3-4203-8050-910869cd6ad2 | SCIP notification number (Netherlands) | c989b0f0-2c0b-4149-8bd9-5208fe70da96 |
SCIP notification number (Poland) | 3478435c-9bfa-4fe4-9df0-6cf9dc0eaa89 | SCIP notification number (Romania) | 5ef5090a-8ffb-41da-8c04-b91b9a94510b |
SCIP notification number (Sweden) | 3691ebff-f4c5-4137-a26c-8bef2389d594 |
Specifications may be subject to change without notice
