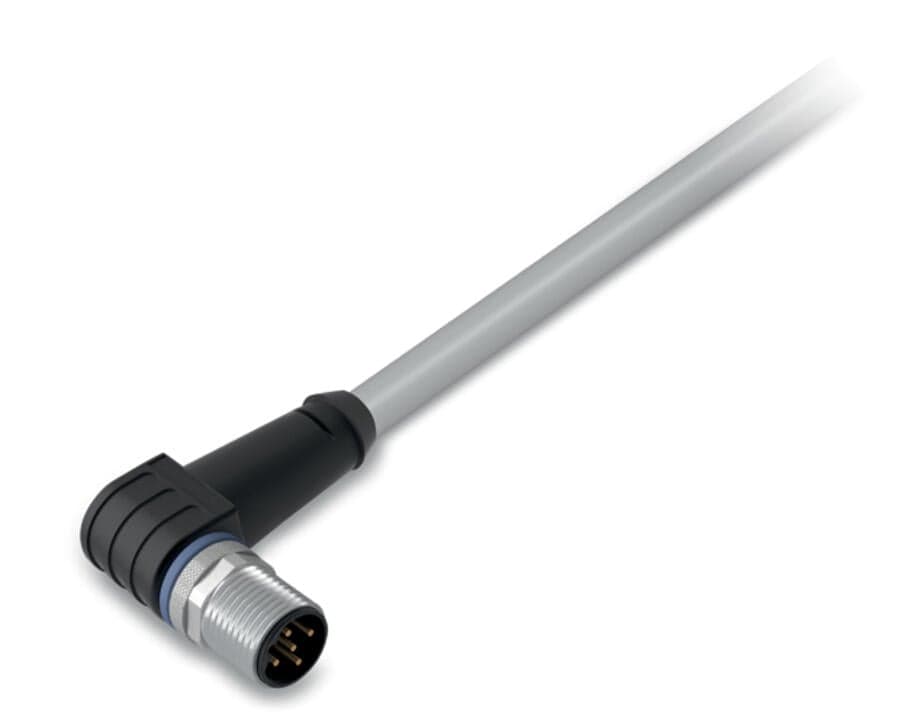

Product Model
756-3104/040-050
Selling Points
- 1Flexible Design: Bending radius of 10 times the cable diameter ensures flexible application.
- 2Halogen-Free Insulation: PP9Y insulation provides safety and durability.
- 3Angled M12 Plug: A-coded M12 plug for secure connections.
- 4Suitable for Drag Chains: Resistant to microbes, hydrolysis, oil, chemicals, and UV.
- 5High-Quality Construction: IP67 protection and high insulation resistance (1000 MΩ).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug - free end | Number of poles | 4 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Cable length | 5m | PLC manufacturer | WAGO |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >109Ω | Conductor resistance | ≤ 26 Ω/km |
Bending radius | 10 x cable diameter (min.) for flexible application | Bending cycles | 4Mio. |
Drag chain capability | yes | Type code | Lif9YH-11YH 4x0.75 mm2 |
Conductor configuration | Bare copper wire (40 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 10g | Ambient (operating) temperature (dynamic) | -30 … +80 °C |
Ambient (operating) temperature (static) | -30 … +80 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454772536 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 7a6bcff1-96ec-4a11-a20e-e33ae8dee9dc |
SCIP notification number (Belgium) | c9af765f-255e-48a7-ba8a-ab7e49b24be2 | SCIP notification number (Bulgaria) | 290af6c9-aebe-4e3e-9512-1e8b581885f0 |
SCIP notification number (Czech Republic) | 8f80d8d6-1b07-4ea6-90cc-021b960a9489 | SCIP notification number (Denmark) | db06766c-8027-491c-9ff3-fbd6d6bc4f7a |
SCIP notification number (Finland) | 8be40021-0963-4a95-8ba6-2963e9909d92 | SCIP notification number (France) | f38534ad-a8c0-4705-8e41-06e3b06e061f |
SCIP notification number (Germany) | 45e7e8a8-d323-43e1-9ad0-cc2ef0865920 | SCIP notification number (Hungary) | c53e8861-a2ec-4a21-a652-e03bb1714fb8 |
SCIP notification number (Italy) | 525111dc-41d2-4248-b02e-a895c2af3580 | SCIP notification number (Netherlands) | 066b4417-a4c0-404d-aba3-d21a03f33eed |
SCIP notification number (Poland) | 387a5a32-ee8d-4a5e-aaea-917ee9225ef6 | SCIP notification number (Romania) | 2e84879b-1bad-4032-a5a3-77daa0735685 |
SCIP notification number (Sweden) | 1fa0ebb5-759a-4e0b-b325-9364f881077f |
Specifications may be subject to change without notice
