Product Model

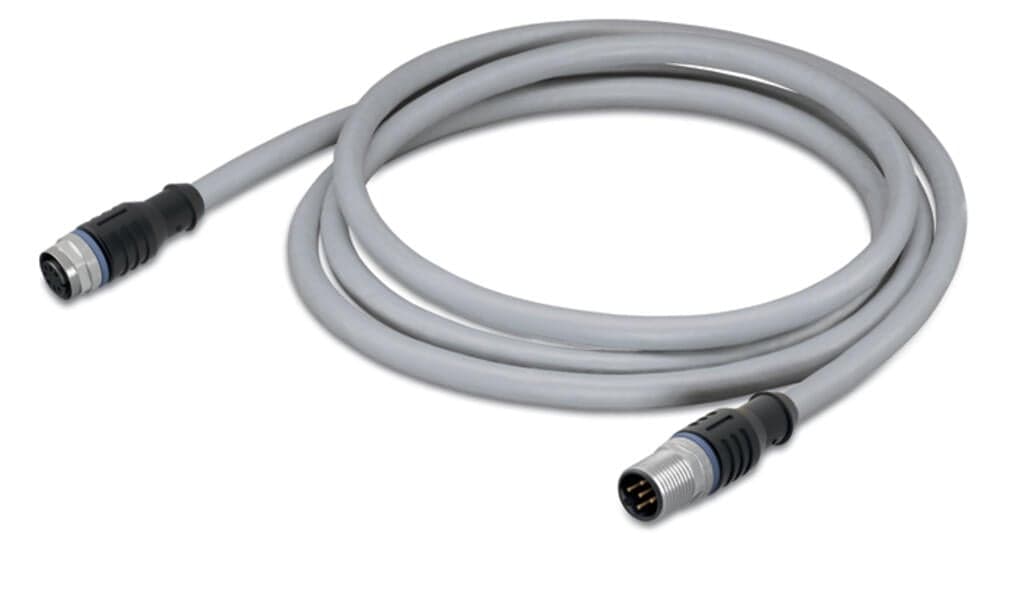

756-3105/040-070
Selling Points
- 1Durable construction for long-lasting performance.
- 2Easy installation with M12A socket and plug.
- 3Compatible with various WAGO products for seamless integration.
- 4Reliable 4-pole power supply for precise control.
- 57-meter length for extended connectivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - M12 plug | Number of poles | 4 |
Cable connection direction to mating direction | 0° | Cable connection direction to mating direction (2) | 0° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Connector interface coding (cable/adapter) 2 1 | A-coded |
Cable length | 7m | PLC manufacturer | WAGO |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >109Ω | Conductor resistance | ≤ 26 Ω/km |
Bending radius | 10 x cable diameter (min.) for flexible application | Bending cycles | 4Mio. |
Drag chain capability | yes | Type code | Lif9YH-11YH 4x0.75 mm2 |
Conductor configuration | Bare copper wire (40 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 394g | Ambient (operating) temperature (dynamic) | -30 … +80 °C |
Ambient (operating) temperature (static) | -30 … +80 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143310185 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
