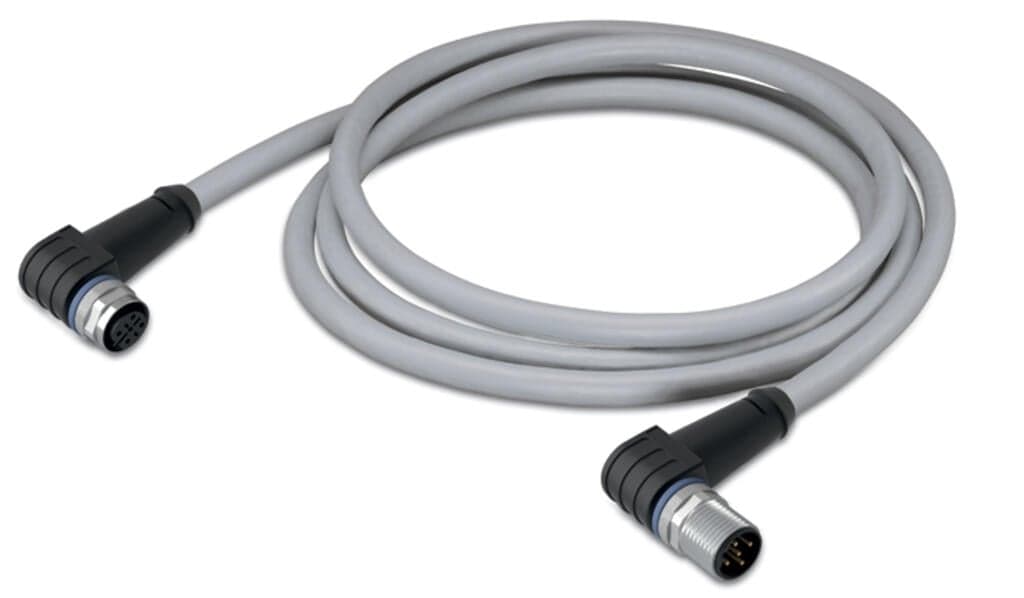

Product Model
756-3106/040-002
Selling Points
- 1Angled design for easy installation.
- 2Copper conductors ensure high conductivity.
- 34A amperage rating for reliable power supply.
- 4Temperature range of -30 to 80°C for versatile use.
- 5Halogen-free insulation for safety compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket - M12 plug | Number of poles | 4 |
Cable connection direction to mating direction | 90° | Cable connection direction to mating direction (2) | 90° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Connector interface coding (cable/adapter) 2 1 | A-coded |
Cable length | 0.2m | PLC manufacturer | WAGO |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >109Ω | Conductor resistance | ≤ 26 Ω/km |
Bending radius | 10 x cable diameter (min.) for flexible application | Bending cycles | 4Mio. |
Drag chain capability | yes | Type code | Lif9YH-11YH 4x0.75 mm2 |
Conductor configuration | Bare copper wire (40 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Housing material | TPU/TPU, black (~ RAL 9005) | Tightening torque | 1?Nm |
Weight | 37.4g | Ambient (operating) temperature (dynamic) | -30 … +80 °C |
Ambient (operating) temperature (static) | -30 … +80 °C | Protection type | IP67 |
Pollution degree | 3/2 per IEC 60664-1 | eCl@ss 10.0 | 27-06-18-01 |
eCl@ss 9.0 | 27-06-18-01 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454127022 |
Customs tariff number | 8544429090 | End of Sale | 2024-05-01 |
End of Production | 2024-05-15 | End of Delivery | 2024-06-01 |
End of Service and Repair | 2025-06-01 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 37aa272e-0810-4536-8649-440468af7edf | SCIP notification number (Belgium) | c2ad3d89-3212-4cdd-87d6-155e0678a92e |
SCIP notification number (Bulgaria) | 99cd32c1-09bb-4066-98ca-b54c69088246 | SCIP notification number (Czech Republic) | 4933c5ed-7942-4a4d-b7f4-f6aa92216cc0 |
SCIP notification number (Denmark) | 27338e25-f61c-4bf0-a15f-468a7546df6f | SCIP notification number (Finland) | c02ac7c5-7682-4020-bb75-beb1b1d5fef3 |
SCIP notification number (France) | 97a736e8-57a6-487b-8d09-5aec50641f33 | SCIP notification number (Germany) | eddcf08f-3c55-454a-b4c9-9f4856ad37ef |
SCIP notification number (Hungary) | 5eb67d73-2b4a-403e-92f7-1526170634b5 | SCIP notification number (Italy) | 85ba4387-7e86-4218-b296-96e9b3a10396 |
SCIP notification number (Netherlands) | 7ef44006-e488-4e2e-8e4a-d14230f22796 | SCIP notification number (Poland) | 833a7dd2-0f7c-46bb-84d7-056ed84bd57b |
SCIP notification number (Romania) | f5114182-19d2-456b-afb7-0c348fa04033 | SCIP notification number (Sweden) | 8e8c9f11-a8d9-4d09-af28-f3ca03153d4e |
Specifications may be subject to change without notice
