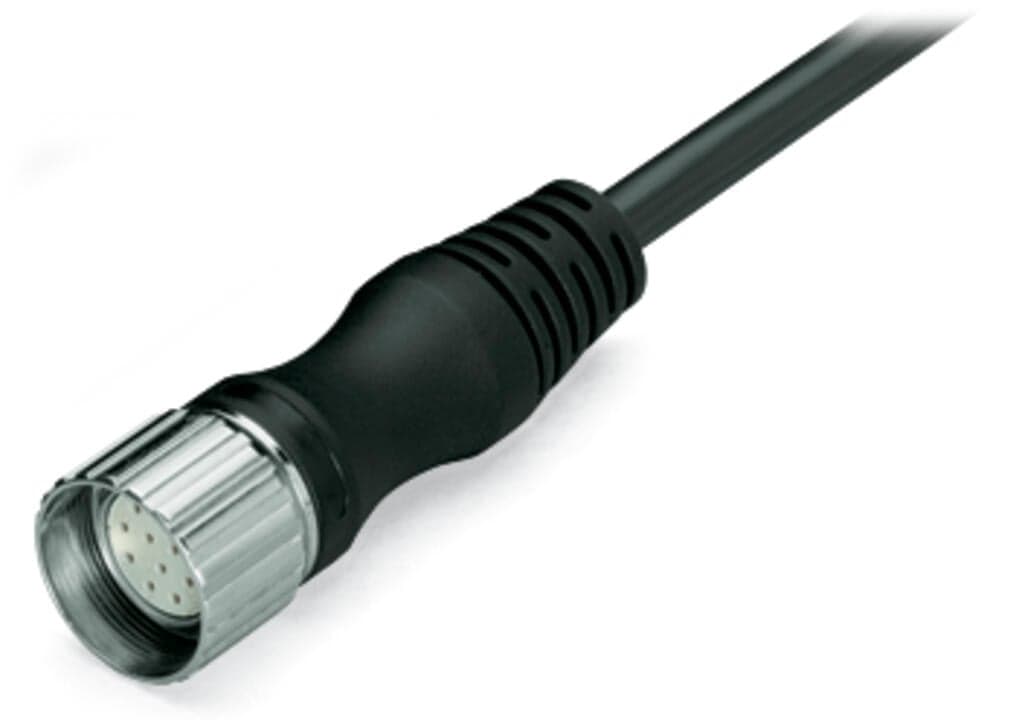

Product Model
756-3203/190-100
Selling Points
- 1Durable IP67 Protection: Withstands harsh environments and ensures reliable performance.
- 219-Pole Configuration: Offers precise control and connectivity in industrial settings.
- 310m Cable Length: Convenient for various installation needs in automation and control systems.
- 4M23 Socket Connection: Easy to connect and integrate with other WAGO products.
- 5High Operating Current: Supports up to 10A (1mm²) for efficient power transmission.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M23 socket - free end | Number of poles | 19 |
Cable connection direction to mating direction | 0° | Cable length | 10m |
Operating voltage | ≤ 300 V | Operating current | 10 mm2 1 A |
Rated surge voltage | ≥?2.0 kV rms | Bending cycles | 2Mio. |
Drag chain capability | yes | Weight | 1423g |
Color | black | Ambient (operating) temperature (dynamic) | -25 … +80 °C |
Ambient (operating) temperature (static) | -40 … +90 °C | Protection type | IP67 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-06-03-11 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918569057 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
