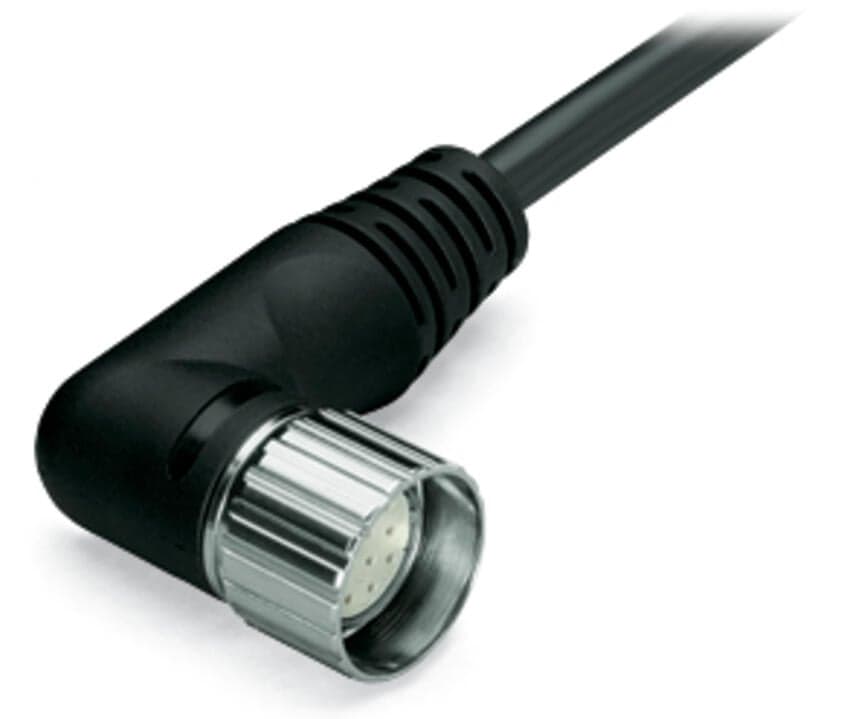

Product Model
756-3204/190-100
Selling Points
- 1High-Quality Connectivity: Reliable and efficient connectivity solution for electrical and automation applications.
- 219-Pole Angled Design: Angled 19-pole configuration for precise connections.
- 310 Meter Length: Convenient 10-meter length for extended reach.
- 4M23 Socket Compatibility: Compatible with M23 socket for secure connections.
- 5Rohs Compliant: Meets ROHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M23 socket - free end | Number of poles | 19 |
Cable connection direction to mating direction | 90° | Cable length | 10m |
Operating voltage | ≤ 300 V | Operating current | 10 mm2 1 A |
Rated surge voltage | ≥?2.0 kV rms | Bending cycles | 2Mio. |
Drag chain capability | yes | Weight | 1438g |
Color | black | Ambient (operating) temperature (dynamic) | -25 … +80 °C |
Ambient (operating) temperature (static) | -40 … +90 °C | Protection type | IP67 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-06-03-11 |
eCl@ss 9.0 | 27-06-03-11 | ETIM 9.0 | EC001855 |
ETIM 8.0 | EC001855 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918569088 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
