Product Model
756-3206/140-250
Selling Points
- 1High Durability: Designed to withstand 2 million bending cycles.
- 2Drag Chain Suitability: Perfect for use in drag chains due to its robust construction.
- 3IP67 Protection: Offers excellent protection against dust and water ingress.

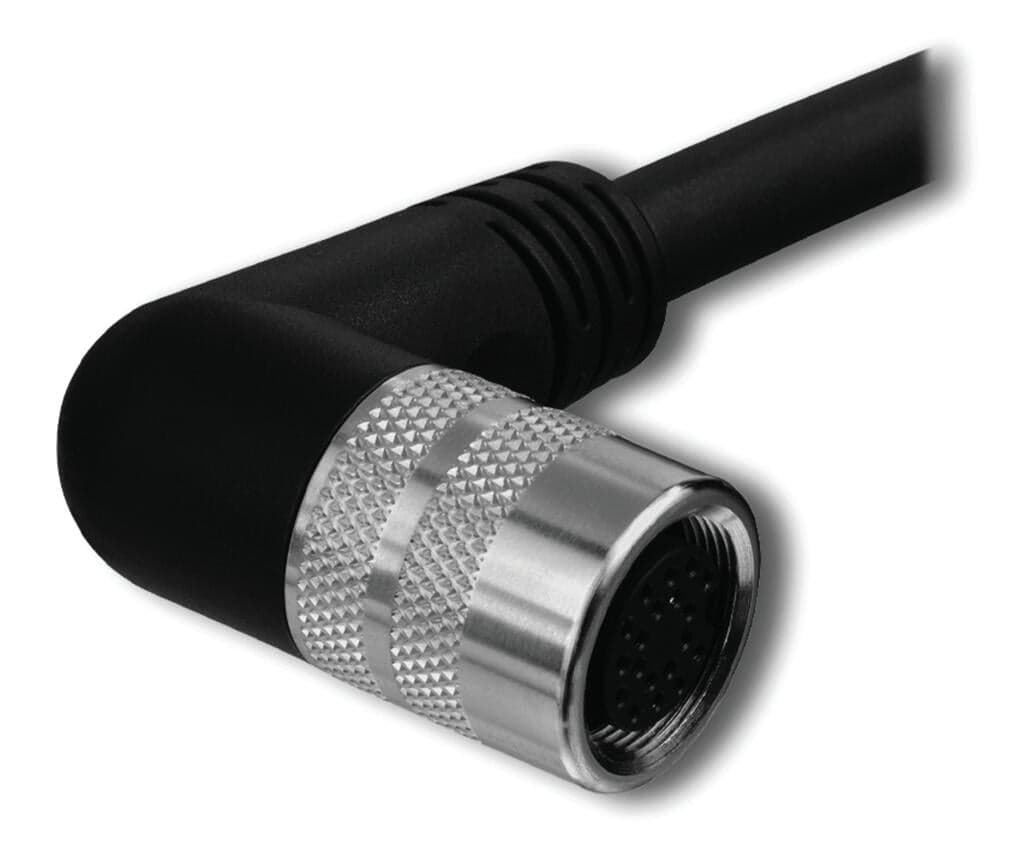

- 4Versatile Connectivity: Features a 14-pole M16 socket with one free end.
- 5Industrial-Grade Quality: Built with high-quality materials for reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M16 socket - free end | Number of poles | 14 |
Cable connection direction to mating direction | 90° | Cable length | 25m |
Operating voltage | 150?V | Operating current | 6 mm2 0,75 A |
Rated surge voltage | 1.2?kV | Bending cycles | 2Mio. |
Drag chain capability | yes | Weight | 2615g |
Color | black | Ambient (operating) temperature (dynamic) | -30 … +90 °C |
Ambient (operating) temperature (static) | -40 … +90 °C | Protection type | IP67 |
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966515244 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
