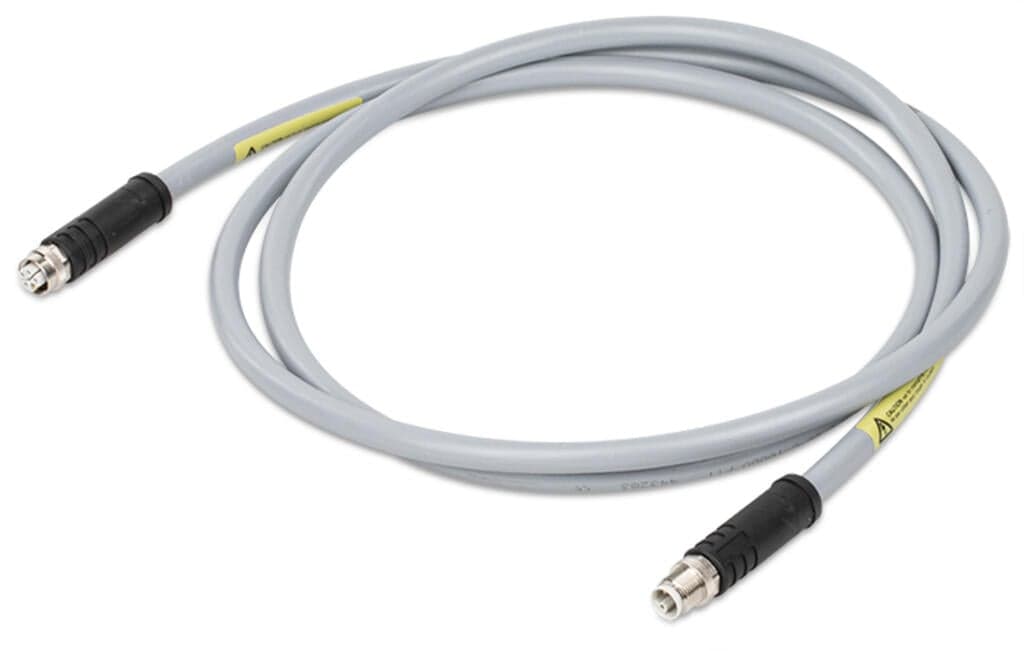

Product Model
756-3515/050-100
Selling Points
- 1Robust Industrial Design: Designed for demanding industrial environments with high resistance against welding sparks and microbes.
- 2High-Quality Materials: Constructed with TPU/TPU housing and halogen-free insulation for excellent chemical and oil resistance.
- 3Reliable Connectivity: Equipped with an M12L socket and plug for secure connections in harsh conditions.
- 4Flexible at Low Temperatures: Maintains flexibility even in low temperatures, ensuring consistent performance.
- 5IP68 Protection: Offers superior protection against dust and water ingress, ensuring long-lasting reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | unpacked | Country of origin | DE |
GTIN | 4066966490725 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | DC 63 V gem?? IEC 60664-1 |
Operating current | 16A | Rated surge voltage | 1.5 kV per IEC 61076-2-111 |
Insulation resistance | ≥108Ω | Contact resistance | 5mΩ |
Conductor resistance | ≤ 8,21 Ω/km | Pollution degree | 3 per IEC 60664-1 |
Protection type | IP68 | Ambient temperature (operation) | -40 … +90 °C (UL max. +80 °C) |
Ambient (operating) temperature (static) | -40 … +90 °C | Ambient (operating) temperature (dynamic) | -30 … +90 °C |
Ambient air (operating) temperature in drag chain | -25 … +60 °C | Bending radius | Fixed: >4x?; Flexible: >7.5x? |
Bending cycles | 10Mio. | Torsional capacity | 270 |
Note | Exclusion of hazardous substances per: 200/53/EC, 2003/11/EC, (EC) No. 1907/2006, 2015/863/EU | Cable length | 10m |
Type code | LiF9YH-11Y-0B 5x2.5mm2 | Cable type | Design per UL + CSA Style 20234 |
Conductor configuration | Bare copper wire (84 x 0.15 mm) | Conductor insulation | PP9Y (halogen-free) |
Sheath material | Polyurethane (PUR), halogen-free per VDE 0472, Part 815; flame resistant per IEC 60332-1-2, VDE 0482-332-1-2, UL vertical flame test VW-1, CSA FT-1 | Sheathed cable color | gray |
Connection type | M12 Socket - M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Cable connection direction to mating direction (2) | 0° |
Connector interface coding (cable/adapter) 1 1 | L-coded | Housing material | TPU/TPU, black (~ RAL 9005) |
Contact material (connector) | CuZn | Contact plating (connector) | Ni/Au (0.2 μm Au over Ni) |
Connector | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM/FKM | Tightening torque | 1 Nm |
Specifications may be subject to change without notice
