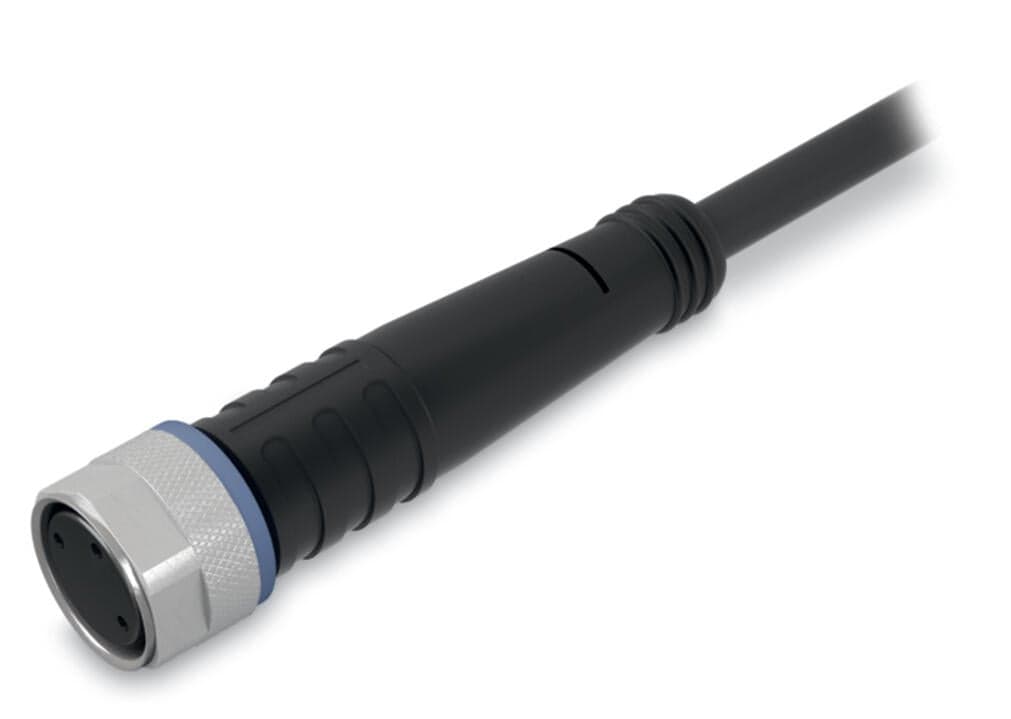

Product Model
756-5101/030-015
Selling Points
- 1High Chemical Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Halogen-Free: Meets DIN VDE 0472 Part 815 and IEC 332-2 standards for flame resistance.
- 3IP67 Protection: Ensures reliable operation in harsh environments.
- 43-Pole M8 Socket: Convenient connection type for easy installation.
- 51.5m Length: Suitable for a variety of industrial applications with a compact design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | CZ |
GTIN | 4044918973298 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | df30bff7-b6c1-4f84-9e4d-1c8b2ace79d9 | SCIP notification number (Belgium) | caba0e1c-1aad-490c-8dc5-5932ed219ff2 |
SCIP notification number (Bulgaria) | 34a9b86f-53f8-4f1f-be53-028e01e67cf6 | SCIP notification number (Czech Republic) | 0a827dd2-2071-4d13-a925-0b1ae1bfe2fd |
SCIP notification number (Denmark) | 51adde74-e33d-4799-9c4b-925d0d27d26c | SCIP notification number (Finland) | 47a18044-cf86-4d6f-90f0-94e6ebd1052f |
SCIP notification number (France) | 6b7391be-7c17-4cc6-981c-8fa2b50170d1 | SCIP notification number (Germany) | fd6d4e23-a201-4373-9979-1f5cea6a85bc |
SCIP notification number (Hungary) | 81a18c93-8f6b-4e87-b163-c85019648cd9 | SCIP notification number (Italy) | f1c197c8-3b40-46ff-833e-feb2578081a9 |
SCIP notification number (Netherlands) | 4410a73b-dbf2-4a3d-a758-b43b7628f692 | SCIP notification number (Poland) | 45dd56c9-08f5-4deb-8815-052fb4816a6d |
SCIP notification number (Romania) | 95e41247-7e8f-45da-b9e6-70fa6fdfac29 | SCIP notification number (Sweden) | 7005666c-d7c0-4932-8825-6f299f833adb |
Operating voltage | 60?VAC/DC | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Note | Silicone-free, CFC-free, microbe and hydrolysis resistant, oil resistant |
Cable length | 1.5m | Type code | LiF9YH-11YH or LiF9YC11YFHF |
Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) | Conductor insulation | PP9Y (halogen-free) |
Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing | Sheathed cable color | black |
Connection type | M8 socket - free end | Number of poles | 3 |
Cable connection direction to mating direction | 0° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
