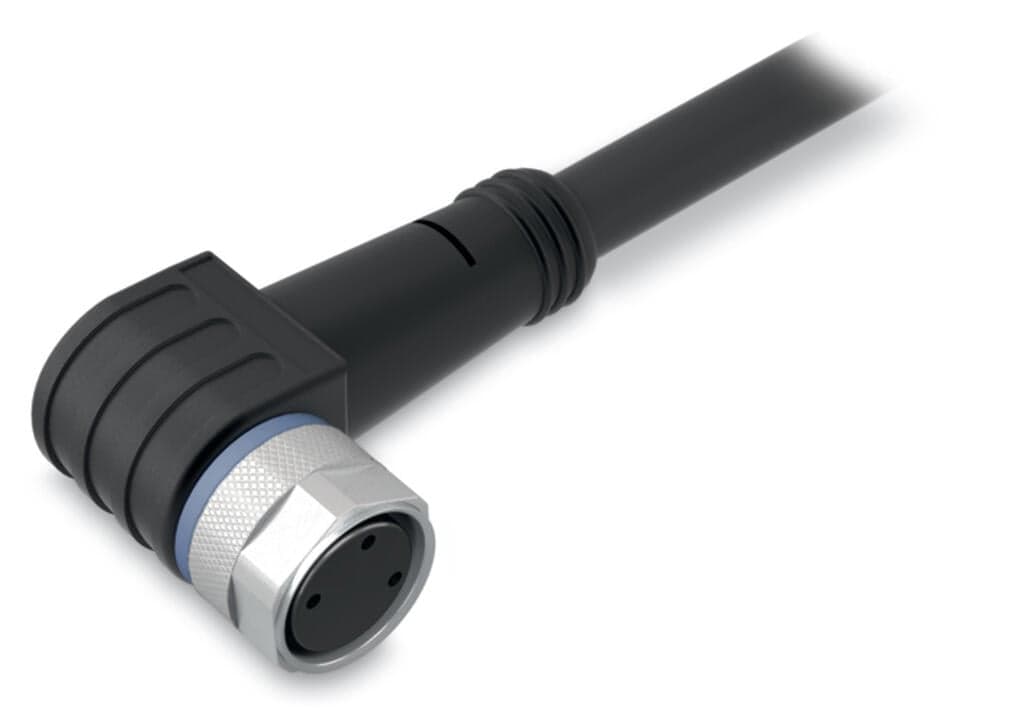

Product Model
756-5102/030-100
Selling Points
- 1High-quality 3-pole M8 socket design for secure connections.
- 2Angled cable end for easier installation and reduced strain.
- 310m length provides ample reach for various applications.
- 4Halogen-free and PUR material ensures safety and durability.
- 5Suitable for drag chains with good chemical resistance and UV protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | CZ |
GTIN | 4045454941901 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | AC/DC 60 V |
Operating current | 4A | Rated surge voltage | 1.5?kV |
Insulation resistance | >109Ω | Contact resistance | 10mΩ |
Conductor resistance | ≤ 60 Ω/km | Pollution degree | 3 per VDE 0110 |
Protection type | IP67 | Ambient (operating) temperature (static) | -50 … +90 °C |
Ambient (operating) temperature (dynamic) | -25 … +90 °C | Bending radius | 10 x cable diameter (min.) |
Bending cycles | 2Mio. | Acceleration (min.) | 5 |
Travel speed (max.) | 3.33 | Travel path (horizontal) max. | 5 |
Travel path (vertical) max. | 2 | Torsional capacity | 180 |
Cable length | 10m | Type code | LiF9YH-11YH or LiF9YC11YFHF |
Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) | Conductor insulation | PP9Y (halogen-free) |
Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing | Sheathed cable color | black |
Connection type | M8 socket - free end | Number of poles | 3 |
Cable connection direction to mating direction | 90° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
