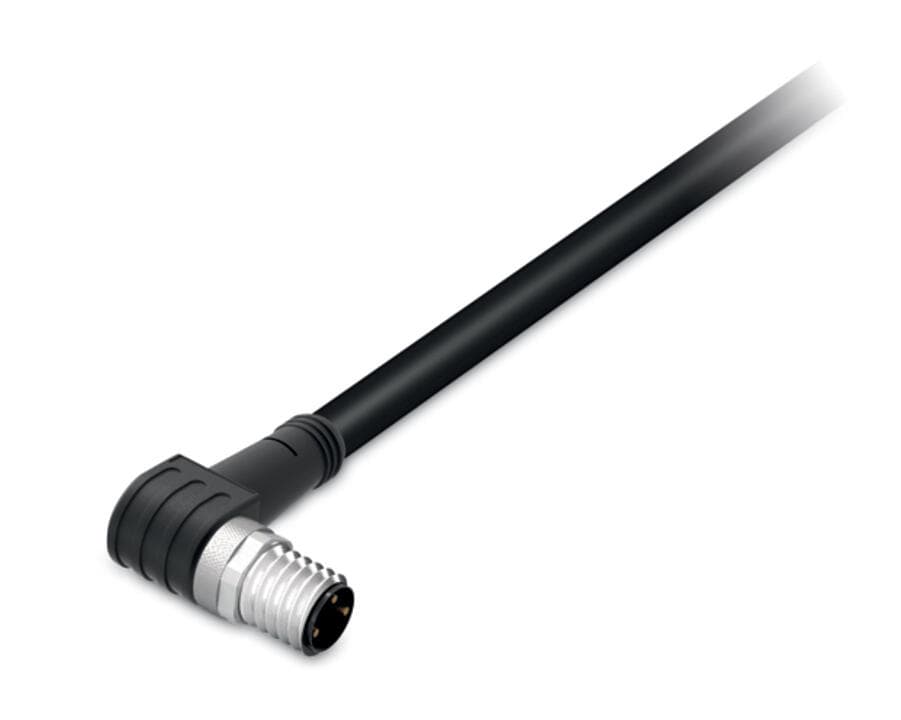

Product Model
756-5112/030-100
Selling Points
- 1Halogen-Free Polyurethane Sheath: Ensures safety and compliance with DIN VDE 0472 Part 815.
- 2High Resistance to Chemicals and UV Radiation: Suitable for use in harsh industrial environments.
- 390° Cable Connection Direction: Facilitates easy installation and reduces strain on connectors.
- 42 Million Bending Cycles: Durable design withstands frequent mechanical stress.
- 5IP67 Protection Class: Provides excellent protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4045454941987 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | eaa5bce9-6f8c-4383-8902-ce3d3507dcd4 | SCIP notification number (Belgium) | 9bd1bb59-fef5-43e2-b89e-e43d00a7e783 |
SCIP notification number (Bulgaria) | 04fd4688-c1ba-4bc3-b54f-d3f69d62ed9d | SCIP notification number (Czech Republic) | 2c66d4ff-fcc9-49e6-931f-e762e5afffdf |
SCIP notification number (Denmark) | 2d2a1bfa-2ec3-43f1-abbe-8c004a3fb152 | SCIP notification number (Finland) | ebbc8e0e-6f8d-4c38-b36e-ba482787e949 |
SCIP notification number (France) | 2d5021cd-7b12-40d6-a442-484ab20078f7 | SCIP notification number (Germany) | 3c8e2a24-a8ca-40d3-a0f8-550baa39d490 |
SCIP notification number (Hungary) | 3a83e0ee-e90b-4662-bad2-f0543835e7b3 | SCIP notification number (Italy) | d37cb6c7-6e4d-4819-8670-5691a0d684ae |
SCIP notification number (Netherlands) | 864bdbf2-3ddf-434b-9987-8c3f5237ca22 | SCIP notification number (Poland) | ab355d8d-236a-4dc7-9317-2608ac3b5ceb |
SCIP notification number (Romania) | 42d348b3-855e-423d-83fa-8ea4c0a981f9 | SCIP notification number (Sweden) | a766d9b4-e414-4e8f-b614-a098584c9574 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 10m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 plug - free end |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
