Product Model
756-5202/030-020
Selling Points
- 1Robust Connectivity: Fitted with M8 sockets and plugs for secure connections.
- 2Halogen-Free: Meets stringent safety standards with halogen-free sheathing.
- 3Chemical Resistance: Offers good resistance to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 4Drag Chain Capability: Designed for use in drag chains with high bending cycles.
- 5High Operating Temperature: Operates effectively in ambient temperatures from -50°C to +90°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974608 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 4f7e1596-e36e-44eb-b675-384fd925eb2d | SCIP notification number (Belgium) | 182a20a9-bf49-4ecb-ad39-672ad2862d49 |
SCIP notification number (Bulgaria) | 58d1ea61-cdc2-478f-b929-a690889aefe1 | SCIP notification number (Czech Republic) | e71fc3fc-e36d-42a8-a519-6139426cd7ad |
SCIP notification number (Denmark) | 433baa81-3d76-48b8-93a1-b70eecafdcb1 | SCIP notification number (Finland) | e01df18b-3297-440d-be06-be293368a950 |
SCIP notification number (France) | c6d8e446-6d4e-4323-87a2-f0adc6bcb7c7 | SCIP notification number (Germany) | b50b0a86-26a2-49a8-bb39-b74de42e5db9 |
SCIP notification number (Hungary) | 5549015c-64e9-4c23-a688-079ff5743605 | SCIP notification number (Italy) | 6be8aeba-9d80-4f33-a708-524c51fcfe6b |
SCIP notification number (Netherlands) | 4b83e285-34be-4979-b1fd-a495a6cf905a | SCIP notification number (Poland) | 8def8312-eb68-4600-973b-3733b586685d |
SCIP notification number (Romania) | 50d8d633-e0ad-4d3a-942e-c1561fc3b5a9 | SCIP notification number (Sweden) | a3ea4d5b-5bee-406c-9f01-d429b57c8cc8 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 2m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |

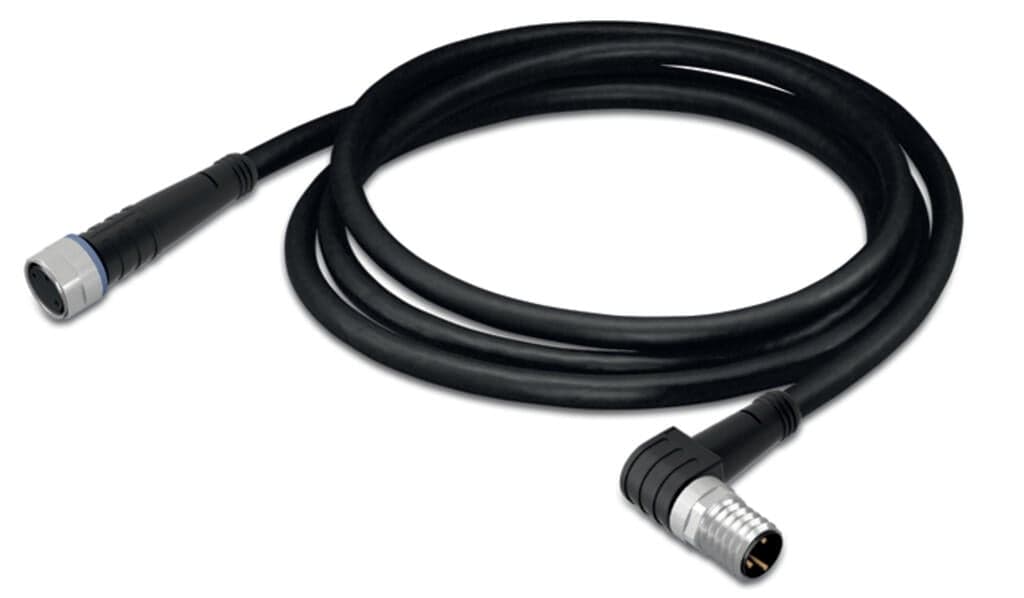

Sheathed cable color | black | Connection type | M8 socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 90° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
