Product Model
756-5204/030-010
Selling Points
- 1Halogen-free, self-extinguishing polyurethane (PUR) sheath for enhanced safety and durability.
- 2Rated surge voltage of 1.5 kV and insulation resistance > 109 Ω for reliable performance.

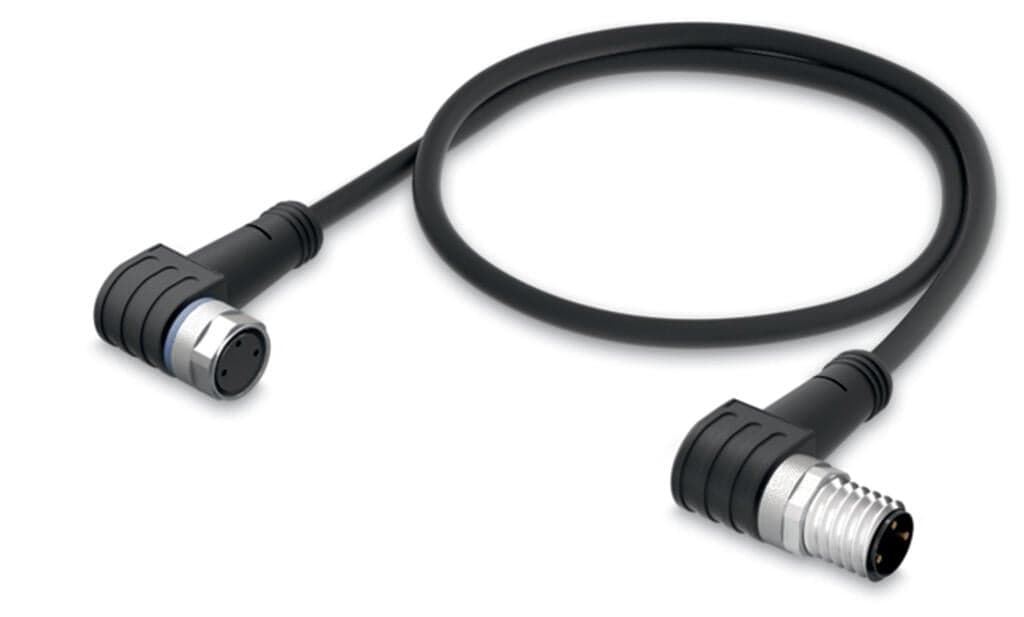

- 3Angled M8 socket and plug for easy installation in tight spaces.
- 4Good resistance to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 5Designed for use in drag chains with a bending radius of 10 x cable diameter (min.) and up to 2 million bending cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974646 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | e7317612-0d3e-4c20-a907-79bc9a0a7c01 | SCIP notification number (Belgium) | 608b8330-05f9-40cc-aa34-7feefad285d3 |
SCIP notification number (Bulgaria) | 2a40f97d-4324-42b4-bd46-6447a378d5c1 | SCIP notification number (Czech Republic) | b1007a36-4dbd-43e8-9c91-fa2582b1d6a4 |
SCIP notification number (Denmark) | 0a89de70-0f48-4b16-a82e-85dcbfa94328 | SCIP notification number (Finland) | c2322a8b-323e-424d-b890-1b04d1c7fbce |
SCIP notification number (France) | 1beb6cae-bc92-4e90-9059-ce75de99f3b2 | SCIP notification number (Germany) | f963ea76-d9d7-4ac5-aef3-ce935a570905 |
SCIP notification number (Hungary) | c892bbe9-5256-4bde-904f-bfeacfe00652 | SCIP notification number (Italy) | 57bb90c1-b12f-4c1b-96b2-1a4934b22a2b |
SCIP notification number (Netherlands) | 6a714332-dfcd-49c5-9ddf-b54857636d5d | SCIP notification number (Poland) | 843a1b65-6a33-403e-9b4e-465c96b4633b |
SCIP notification number (Romania) | 25560962-b20f-4461-b69a-861833fdad06 | SCIP notification number (Sweden) | 072fe30d-2586-40b1-bd93-b4b4281041c4 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 90° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
