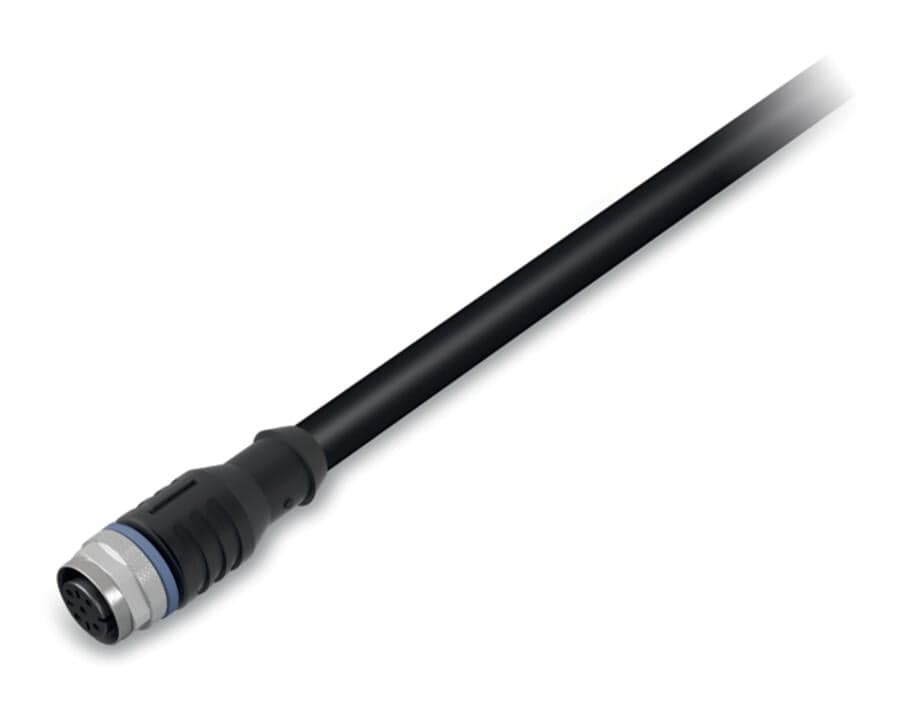

Product Model
756-5301/050-100
Selling Points
- 1Halogen-free and durable: Made from high-quality polyurethane (PUR) for long-lasting performance.
- 2Robust construction: Ensures reliable operation in harsh industrial environments.
- 3Wide compatibility: Compatible with a variety of devices, making it a versatile choice for engineers and technicians.
- 4Efficient performance: Designed to minimize downtime and enhance operational efficiency.
- 5Operating specifications: Supports up to 250 VAC/DC and 0.166666666666667 A, suitable for various automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4045454942014 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 848513f3-2bf6-4b47-b437-2370bc6537ef | SCIP notification number (Belgium) | 9a5fbb5b-707e-4dfe-9858-8e660f8ee120 |
SCIP notification number (Bulgaria) | e22f2816-7e03-4885-b3eb-f3de2cda8df2 | SCIP notification number (Czech Republic) | eb2b2fb5-008f-4853-ba47-49b4d1ad4b5d |
SCIP notification number (Denmark) | 7e41eb0f-1f06-45a5-aba6-b91c0be601d2 | SCIP notification number (Finland) | 19d942f7-06c6-472b-b555-23597013024c |
SCIP notification number (France) | 5cd3fd53-05a3-4216-a179-7b9be1fc5919 | SCIP notification number (Germany) | 38a676a9-44d4-4dab-b230-a94d975ae8c2 |
SCIP notification number (Hungary) | 5cb75748-967c-4b17-81b5-6270a0aceca3 | SCIP notification number (Italy) | 1f2efba5-ab55-4ff3-a79c-c5de06775a23 |
SCIP notification number (Netherlands) | 9af4f733-46d7-44af-bce7-75e1905d631f | SCIP notification number (Poland) | 59311e52-33cb-4dc1-8c66-b53dd0cd7b10 |
SCIP notification number (Romania) | b06ce1a1-bbd5-48ec-8f3d-a1935ea5d8cd | SCIP notification number (Sweden) | 767221cd-3e35-48aa-a210-7aedf73ae2fa |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 10m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket - free end |
Number of poles | 5 | Cable connection direction to mating direction | 0° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
