Product Model
756-5302/040-050
Selling Points
- 1High-Quality Construction: Built with polyurethane (PUR) sheath, halogen-free per DIN VDE 0472 Part 815, and flame-resistant per IEC 332-2.

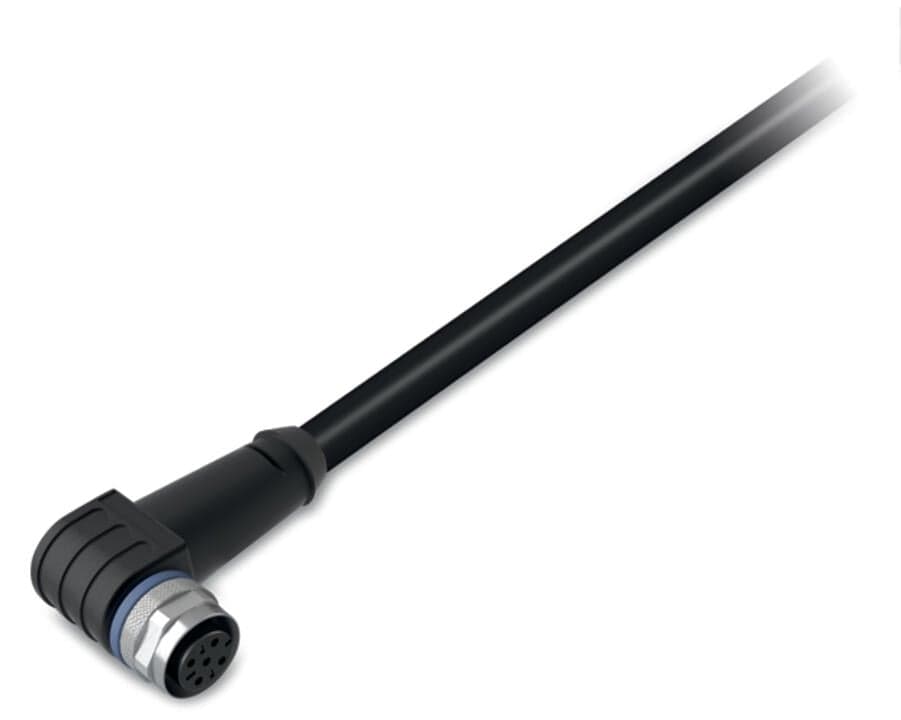

- 2Efficient Connectivity: Angled M12 socket ensures easy connection and disconnection.
- 3Reliable Performance: Rated surge voltage of 2.5 kV for enhanced durability.
- 4Versatile Application: Suitable for various industrial and automation applications.
- 5Compliant with Standards: Meets ROHS compliance and other industry standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4044918974967 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 77fc5d92-4758-48f5-8dc9-24df4ede8723 | SCIP notification number (Belgium) | 91cad76b-1f0b-4c80-9ab8-d4952389076f |
SCIP notification number (Bulgaria) | 8186314d-33ca-46d2-a1cc-451ffa02e5ad | SCIP notification number (Czech Republic) | c4c15f1c-17e1-4f98-b90d-d9387c7102df |
SCIP notification number (Denmark) | 7b213aaa-aff5-49aa-97e4-50fbd2ca97f2 | SCIP notification number (Finland) | fa492f8d-2fa7-49f0-abec-1324047c4a88 |
SCIP notification number (France) | 1e0f37df-00ae-42d2-ad26-2c5b09662e69 | SCIP notification number (Germany) | 1746cd54-1d0c-4602-8238-7ecbfe01d806 |
SCIP notification number (Hungary) | c41e7ab1-a77a-4e00-b57d-27333c52442b | SCIP notification number (Italy) | 9d6c1b62-3914-4a40-9561-df77be925531 |
SCIP notification number (Netherlands) | e810d79c-b0bc-4b4a-937a-d3233ae1d3fb | SCIP notification number (Poland) | cad3de96-eb10-4c37-9e79-bc4f8cfaeae6 |
SCIP notification number (Romania) | 9608a967-b268-4819-a802-f15d7667b19b | SCIP notification number (Sweden) | 97b85f6b-46c2-402a-9a44-eae8ae932cbe |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending diameter (min.) | 3 | Bending radius | 10 x cable diameter (min.) |
Bending cycles | 2Mio. | Acceleration (min.) | 5 |
Travel speed (max.) | 3.33 | Travel path (horizontal) max. | 5 |
Travel path (vertical) max. | 2 | Torsional capacity | 180 |
Cable length | 5m | Type code | LiF9YH-11YH or LiF9YC11YFHF |
Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) | Conductor insulation | PP9Y (halogen-free) |
Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing | Sheathed cable color | black |
Connection type | M12 Socket - free end | Number of poles | 4 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 1?Nm |
Specifications may be subject to change without notice
