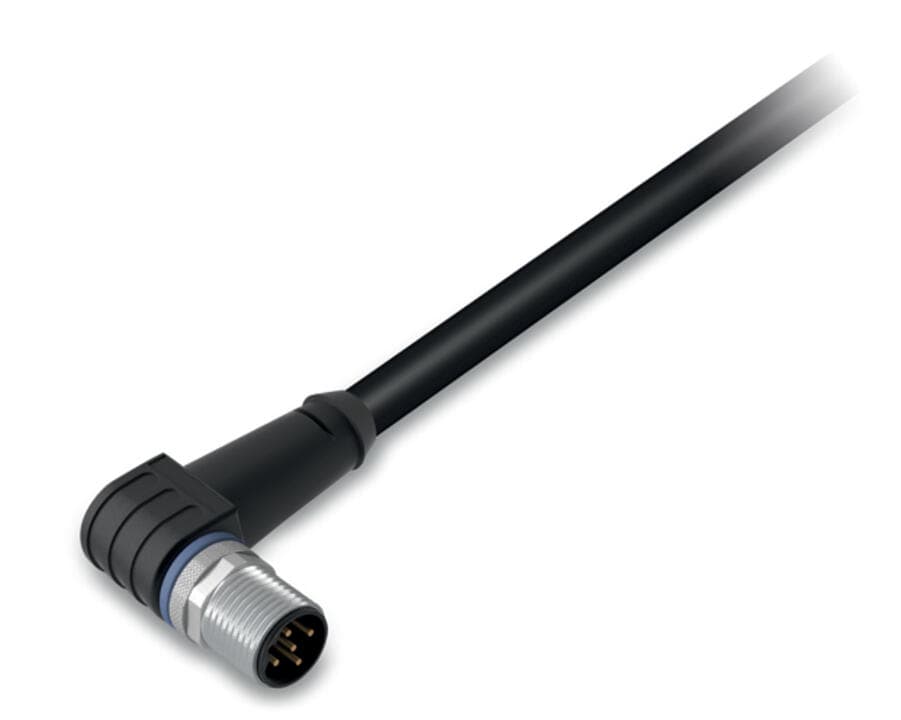

Product Model
756-5312/030-015
Selling Points
- 1High Chemical Resistance: Designed to withstand harsh industrial environments with high chemical resistance.
- 2Drag Chain Suitability: Built to handle drag chains, ensuring reliable performance in demanding applications.
- 3Halogen-Free: Compliant with EU RoHS, ensuring safety and environmental sustainability.
- 4Polyurethane (PUR) Housing: Durable and flame-resistant housing material for added safety.
- 5Operating Voltage: 250 VAC/DC: Compatible with a wide range of industrial power supplies, making it versatile for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4045454942205 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2bd79c25-0fb1-4da3-8429-8b430928cc66 | SCIP notification number (Belgium) | f2e8e667-d230-4c0e-aaa2-fad8cee83882 |
SCIP notification number (Bulgaria) | 6ffc2547-56ef-4654-ae79-71f77236700f | SCIP notification number (Czech Republic) | 6a522774-64a0-4b4c-b8bd-c7030df8627d |
SCIP notification number (Denmark) | 736fd08e-fa9c-4136-97a2-232b5eb34520 | SCIP notification number (Finland) | 1998c979-5803-4ac2-abbf-8c43442fe7e6 |
SCIP notification number (France) | 1679755b-6a9e-4e5f-9cc2-4d1f95801939 | SCIP notification number (Germany) | 99b00af0-1a23-489c-a23d-5dc51b9f7bf8 |
SCIP notification number (Hungary) | e83c6562-53ea-4c1d-8e61-bbc8a2583977 | SCIP notification number (Italy) | 0889ec03-0a43-42aa-b516-2935aa4c77a0 |
SCIP notification number (Netherlands) | 5d2f6f3a-9c04-41e5-beb7-55e84d6526c7 | SCIP notification number (Poland) | ee8f9067-399d-4ad9-8e31-b4bde4552498 |
SCIP notification number (Romania) | 528d7b58-9555-4cee-81ee-611532e32bb3 | SCIP notification number (Sweden) | bd488eec-b00d-4499-9f7e-d63ec17db922 |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1.5m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 plug - free end |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
