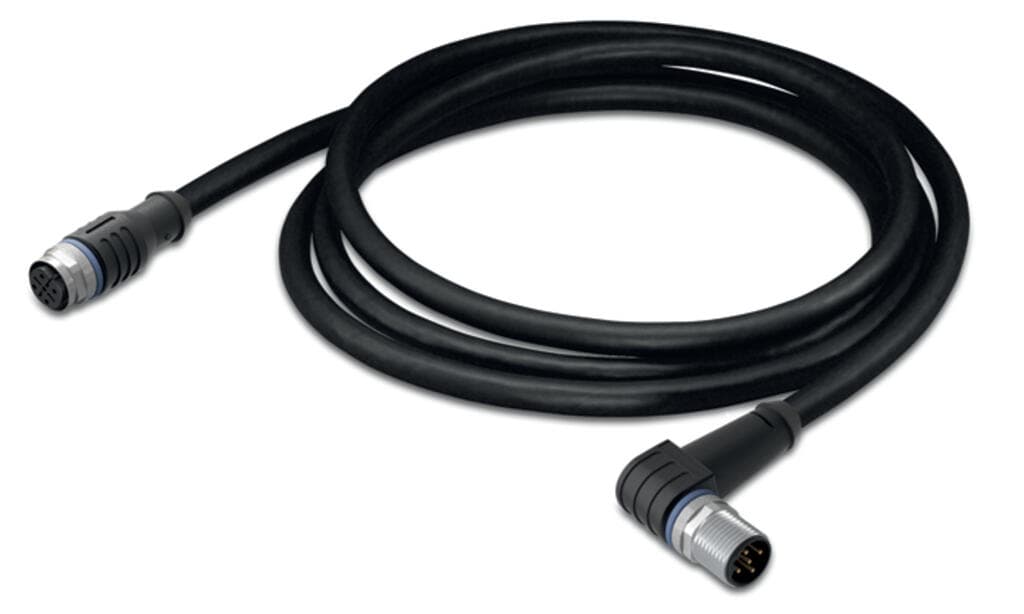

Product Model
756-5402/040-010
Selling Points
- 1Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Ensures durability in harsh environments with IP67 protection.
- 3Compliant with DIN VDE 0472 Part 815 for safe and environmentally friendly use.
- 4Available in straight and angled configurations with M12A sockets and plugs.
- 5Suitable for drag chains and other demanding industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4044918975537 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 374fb659-07f6-49e3-9e8c-3d7f14f43b1d | SCIP notification number (Belgium) | a5ac2f4a-07af-4a66-bb66-c44c7e48c015 |
SCIP notification number (Bulgaria) | 35eaaf07-eb43-4033-a40d-6c1b458c95ed | SCIP notification number (Czech Republic) | ae37ac7d-349d-4f2c-991e-43ecc3d3ba89 |
SCIP notification number (Denmark) | 7bd16b6a-5e37-418a-bd56-8df77470100d | SCIP notification number (Finland) | d97a01af-c4a9-4c1f-86ce-ef1621dc4505 |
SCIP notification number (France) | 1f78e584-fcbf-4dce-9dc7-d8573208fe06 | SCIP notification number (Germany) | ee5c571b-e2c1-4129-ad32-f58d42287c9c |
SCIP notification number (Hungary) | 4f05f3f3-b999-4b47-b363-052cf63e59e8 | SCIP notification number (Italy) | e1d8976c-6f0c-4771-980a-6efaef62e69e |
SCIP notification number (Netherlands) | 35fe7c6c-6374-4e8f-85ad-ac900d006f19 | SCIP notification number (Poland) | 068d6cc2-331f-498c-a6a6-192f3b6afa1d |
SCIP notification number (Romania) | 2d174db3-e74e-4b9f-bde8-d8c218c6ce14 | SCIP notification number (Sweden) | b4a435f2-fa52-4259-bce8-c398bbd30312 |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Connector interface coding (cable/adapter) 2 1 | A-coded | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
