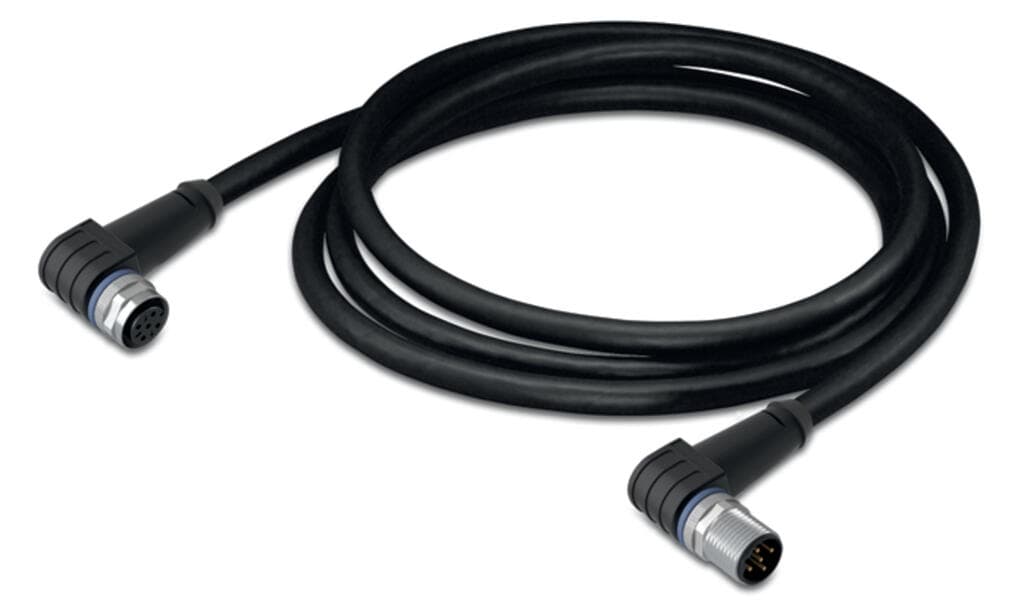

Product Model
756-5404/030-010
Selling Points
- 1High Chemical Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Halogen-Free: Meets DIN VDE 0472 Part 815 standards for halogen-free materials.
- 3IP67 Protection: Offers robust protection against dust and water ingress.
- 4Flexible Usage: Suitable for drag chains and various industrial environments.
- 5UL Listed: Compliant with Underwriters Laboratories Inc. (UL) standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | HU |
GTIN | 4044918975117 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 25a903a0-2e90-4a4f-a364-a5201847a7e2 | SCIP notification number (Belgium) | 6736673c-cde6-4c13-aa77-066c126de89f |
SCIP notification number (Bulgaria) | aeff3859-08ff-484b-87e5-a2bd2261bc79 | SCIP notification number (Czech Republic) | a70e90e8-938e-43df-9101-aaf42e08555c |
SCIP notification number (Denmark) | 3ac89d63-10b4-4089-b87c-3efdc122db22 | SCIP notification number (Finland) | b7ab4194-1588-4fcf-92e1-2f6151d39a94 |
SCIP notification number (France) | 9ea9d959-da1f-4a3b-a3b8-228cdf0a280d | SCIP notification number (Germany) | 99d882ca-fa11-468d-ac6b-e6dbee8030f3 |
SCIP notification number (Hungary) | 2d8e36b0-49e3-40b0-a218-0be84720dc99 | SCIP notification number (Italy) | 43cf58dc-8e2a-4679-b331-3a66500df385 |
SCIP notification number (Netherlands) | fe57fa67-27aa-471c-9c94-e533b3bce6a6 | SCIP notification number (Poland) | 50ccfc62-c7ce-43e7-91e5-73a497b2036f |
SCIP notification number (Romania) | 83f4c5e6-265b-4c3a-8e10-5d3f40295b39 | SCIP notification number (Sweden) | 0d037151-3cca-4f0c-952b-e5423a2722a0 |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket - M12 plug |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Connector interface coding (cable/adapter) 2 1 | A-coded | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
