Product Model
756-5508/030-020
Selling Points
- 1High-Quality Connectivity: Ensures reliable connections with M8 socket and M12A plug.
- 2Chemical Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 3Industrial Grade: Designed for use in harsh industrial environments with IP67 protection.
- 4Flexible Length: Available in a 2-meter length for easy installation and flexibility.
- 5Compliance Standards: Compliant with UL and DIN VDE 0472 Part 815 for safety and quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918975865 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | cdcd36fa-e043-48d1-86b1-7d088e11391a | SCIP notification number (Belgium) | 3b361d82-7ee9-48f3-82a6-46b6bf084d27 |
SCIP notification number (Bulgaria) | c58807b4-c2e4-419e-bb0e-e0ce6889aad7 | SCIP notification number (Czech Republic) | 791f9ebe-43fa-4cf3-b816-cf391f5083ba |
SCIP notification number (Denmark) | 779cc121-a031-47a4-b081-0c73f1bbeb5a | SCIP notification number (Finland) | 21c7298e-a79a-45e6-bf1f-adc691e1a7f9 |
SCIP notification number (France) | 22562bff-7881-42d4-bc40-92a662b83fe0 | SCIP notification number (Germany) | 116d66cc-6b04-4fe3-bbc5-ebd0a3e99043 |
SCIP notification number (Hungary) | cb1e0c28-f7dd-4aae-9fa1-52a40e71a138 | SCIP notification number (Italy) | e54e275f-e473-40b0-a674-2e64d3642fa9 |
SCIP notification number (Netherlands) | 6b59abac-a54c-491e-9a43-81dae65aab56 | SCIP notification number (Poland) | 4590199a-6f7d-4747-8ba1-b3b233bba2c5 |
SCIP notification number (Romania) | c5ad0583-54a7-425d-9a36-3ad420e06077 | SCIP notification number (Sweden) | 73494baa-fa71-4bcf-a1b8-58c191a7fb80 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 2m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |

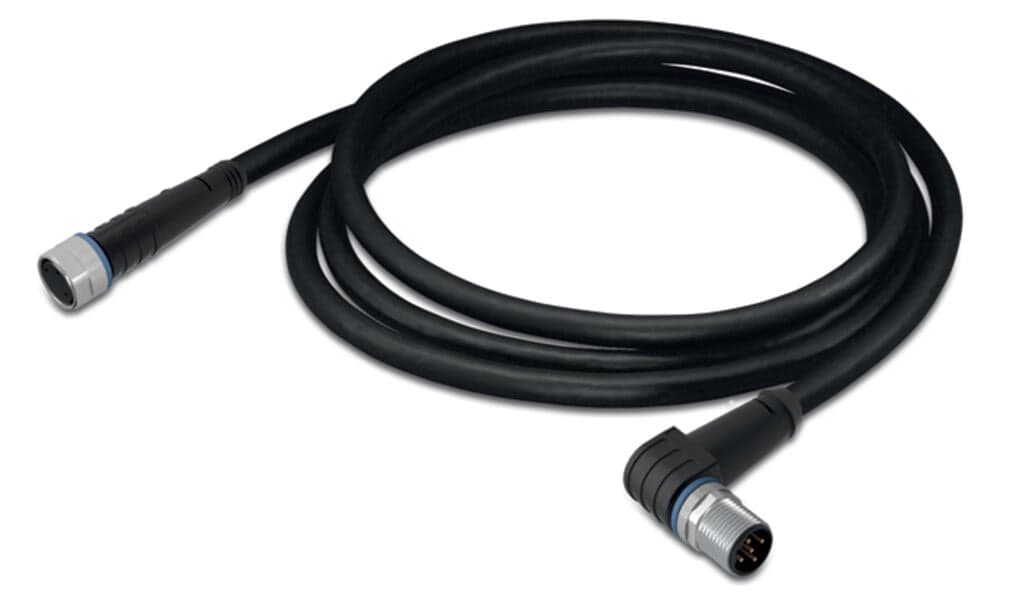

Sheathed cable color | black | Connection type | M8 socket - M12 plug |
Number of poles | 3 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 2 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
Specifications may be subject to change without notice
