Product Model
756-5510/040-020
Selling Points
- 1Built with PUR, halogen-free material for long-lasting performance.
- 2Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.

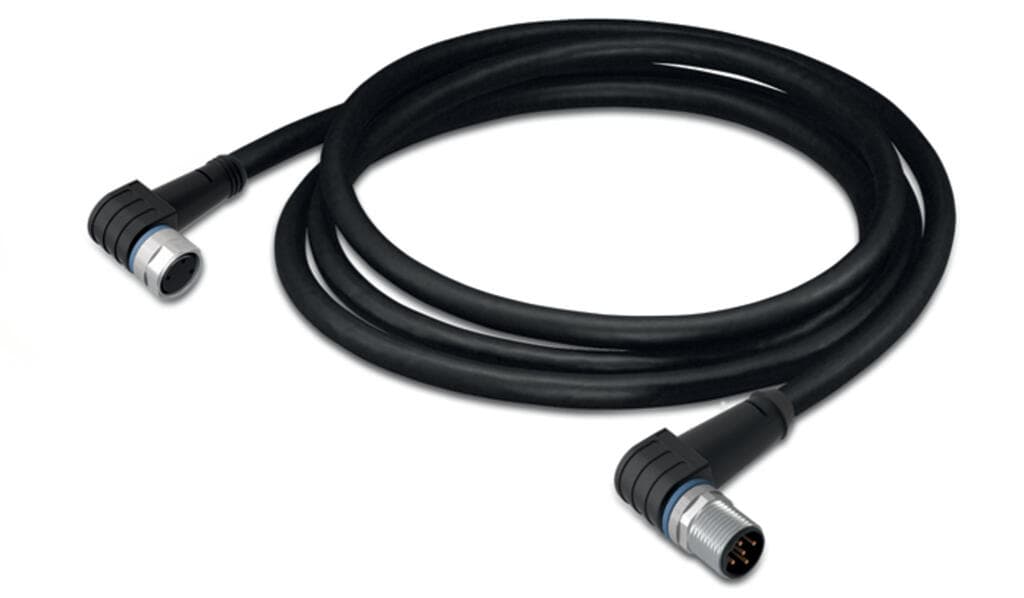

- 3M8 socket and M12A plug are angled for easier installation.
- 4Designed for 4-pole connections, suitable for various industrial applications.
- 5Available in a compact 2-meter length for efficient system wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918976008 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 8019e4d4-6c11-47bf-842c-653cd08a1b0e | SCIP notification number (Belgium) | 54d9fb6a-1d53-415b-b3a2-7990a7258d0c |
SCIP notification number (Bulgaria) | c298076e-9f3c-4505-a8af-64a6756afc69 | SCIP notification number (Czech Republic) | 6bafc9ac-cd59-4519-a999-74d4d5f50614 |
SCIP notification number (Denmark) | 49982320-2490-42d1-a3a4-00b66c2e39a1 | SCIP notification number (Finland) | 466d4455-4d4e-46ee-b8dc-51d57a143576 |
SCIP notification number (France) | 509f1996-23b1-41a8-9f0b-7fdeda7dc3c5 | SCIP notification number (Germany) | bd87f223-68cd-49cc-8d00-d7113d3b02b1 |
SCIP notification number (Hungary) | b4ed90c4-2719-415a-90dc-7387b71ad7ea | SCIP notification number (Italy) | 6fd5e02c-7bee-4f3c-8315-be2ca493d702 |
SCIP notification number (Netherlands) | 3b00c21a-8fdc-4121-8f20-f9e91d318ffd | SCIP notification number (Poland) | 18ba1913-1281-41f6-ae23-deb522372ab5 |
SCIP notification number (Romania) | c568d1e6-d82a-4aad-8046-1cfc93e8873a | SCIP notification number (Sweden) | 9591181e-6d57-4797-910b-9d4331681b24 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 2m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 2 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
Specifications may be subject to change without notice
