Product Model
756-5513/040-010
Selling Points
- 1High Chemical Resistance: Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.

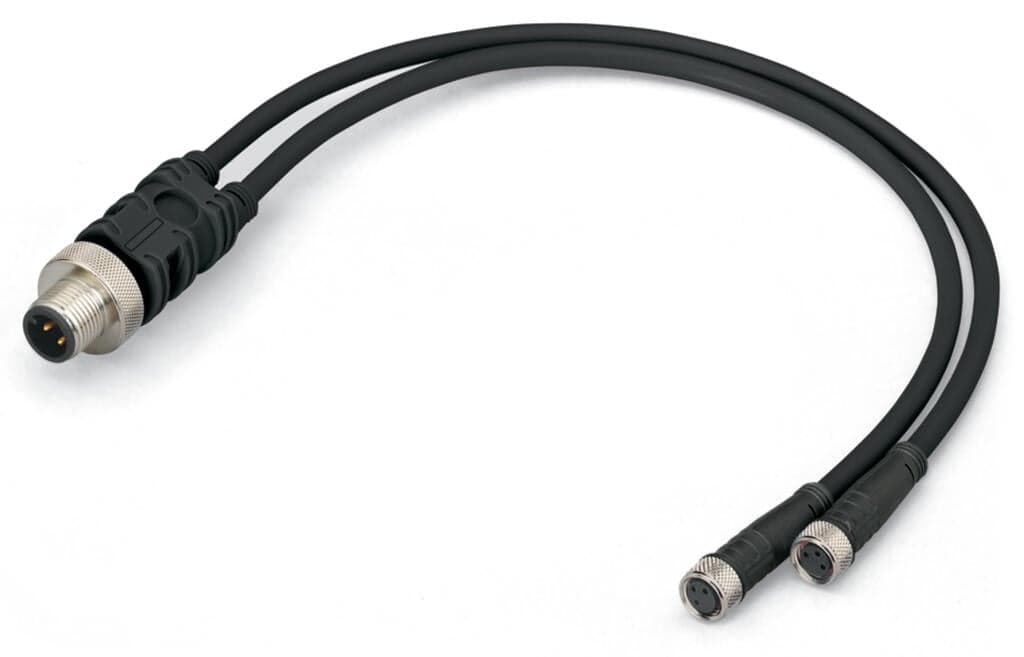

- 2Compact Design: Straight 4-pole cable with 2xM8 sockets and M12A plug.
- 3Durable Construction: Suitable for drag chains and harsh industrial environments.
- 4Easy Installation: Push-in termination for quick and easy connections.
- 5Reliable Performance: Halogen-free and PUR material ensures long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918994811 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | ae6357af-53dc-4b13-a30a-64cb468fc959 | SCIP notification number (Belgium) | a3b4aefd-0095-4ac0-8d73-729a7b2ca64d |
SCIP notification number (Bulgaria) | b2445c5c-0797-4c24-a4f2-32254412ec5e | SCIP notification number (Czech Republic) | a49d3cc2-bf5c-4f5b-85c9-1d584053a7ef |
SCIP notification number (Denmark) | a3a2acd6-1992-43b9-9c37-8dc8b26f1ecd | SCIP notification number (Finland) | 42e2f6c2-b51c-4fca-b04c-ccdecc463e4d |
SCIP notification number (France) | 6b0eba94-1c05-49a0-a90a-a08bbcbdf1b9 | SCIP notification number (Germany) | 4593b8a9-7921-4394-b1c7-f6a620344611 |
SCIP notification number (Hungary) | f4e03ba1-3d9c-4271-9c2b-acc9e9d0b2f8 | SCIP notification number (Italy) | 2c0e96c2-8e18-4374-8360-70a020b56875 |
SCIP notification number (Netherlands) | aa5aa259-0d87-40f6-be6f-7caa78960a4c | SCIP notification number (Poland) | f47eec7a-fb3f-4697-825e-ac3349ae3f69 |
SCIP notification number (Romania) | 861c692f-b14a-4839-b9d7-d7e2949158eb | SCIP notification number (Sweden) | aea346f4-0466-4875-b79d-e1479c0c434c |
Operating voltage | 60?VAC/DC | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket;?M8 socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 2 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
Specifications may be subject to change without notice
