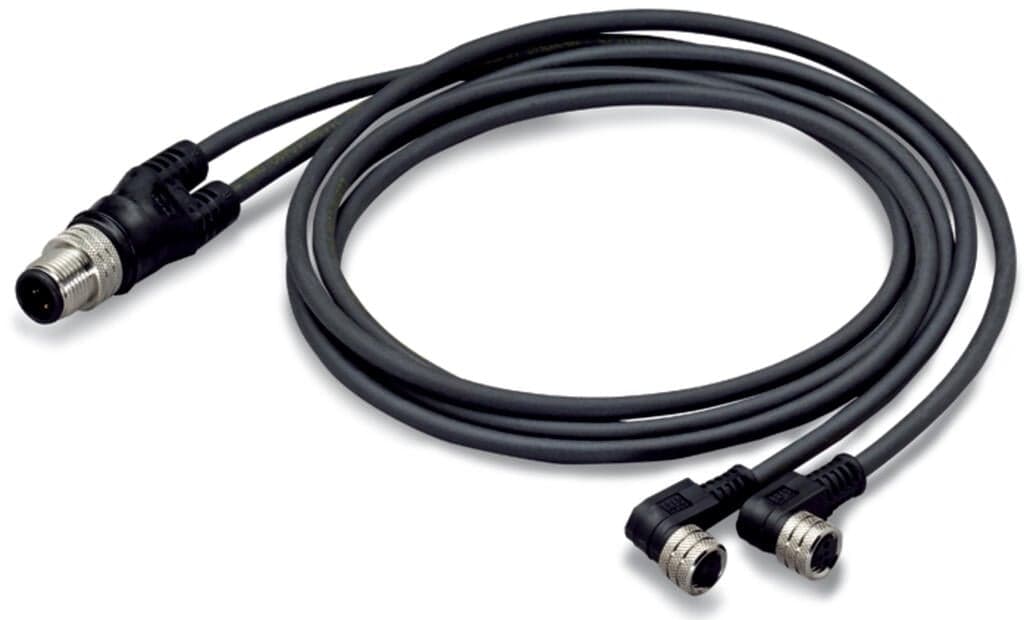

Product Model
756-5514/040-020
Selling Points
- 1The cable is made from polyurethane (OPUR) material, ensuring it is halogen-free and flame-resistant per DIN VDE 0472 Part 815 and IEC 332-2 standards.
- 2Designed to withstand high resistance to microbes, hydrolysis, oil, chemicals, and UV radiation, making it suitable for harsh industrial environments.
- 3The cable is schleppkettentauglich, meaning it can be used in applications involving drag chains without compromising its performance.
- 4Offers an IP67 protection class, ensuring the cable is dustproof and waterproof, suitable for use in various industrial settings.
- 5Withstands up to 2 million bending cycles, providing long-lasting durability in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918994842 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 580a605d-152a-43ac-8ec1-ff0ee353ab83 | SCIP notification number (Belgium) | 4c046448-68a0-4e16-9c61-f14385792b89 |
SCIP notification number (Bulgaria) | cae9f806-2b78-483a-8ac8-ac4022f4aa0d | SCIP notification number (Czech Republic) | 5c4eef24-3cf8-4b9a-b996-33f07aa8a4ab |
SCIP notification number (Denmark) | fa7f8680-57b7-41fb-9e2b-633df792e958 | SCIP notification number (Finland) | 5bf14079-0220-493f-bed6-98e4246bb298 |
SCIP notification number (France) | 2c3a66b8-761b-46e8-bea9-1d6ab931b34b | SCIP notification number (Germany) | 80092a24-4ad4-48ca-922c-60264b0a1847 |
SCIP notification number (Hungary) | 52d309a0-263a-4d98-b5d5-a406cc43106e | SCIP notification number (Italy) | 264ad3fb-896a-41cc-a5b4-2e8ca5e93ef0 |
SCIP notification number (Netherlands) | 18fb6b6c-a88c-437a-bf3d-f234fd46cc70 | SCIP notification number (Poland) | 33d6d0f8-ac87-4a99-8b2a-3f59d4ed8da6 |
SCIP notification number (Romania) | 11149417-fd13-4b4d-8cb3-6fb118c13e66 | SCIP notification number (Sweden) | 2de5868d-1c74-4410-b497-6e41fd9372c5 |
Operating voltage | 60?VAC/DC | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 2m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket;?M8 socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 2 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
Specifications may be subject to change without notice
