Product Model
756-5516/040-010
Selling Points
- 1High-quality, durable cable with a 4-pole design.
- 2Compatible with various industrial automation systems.

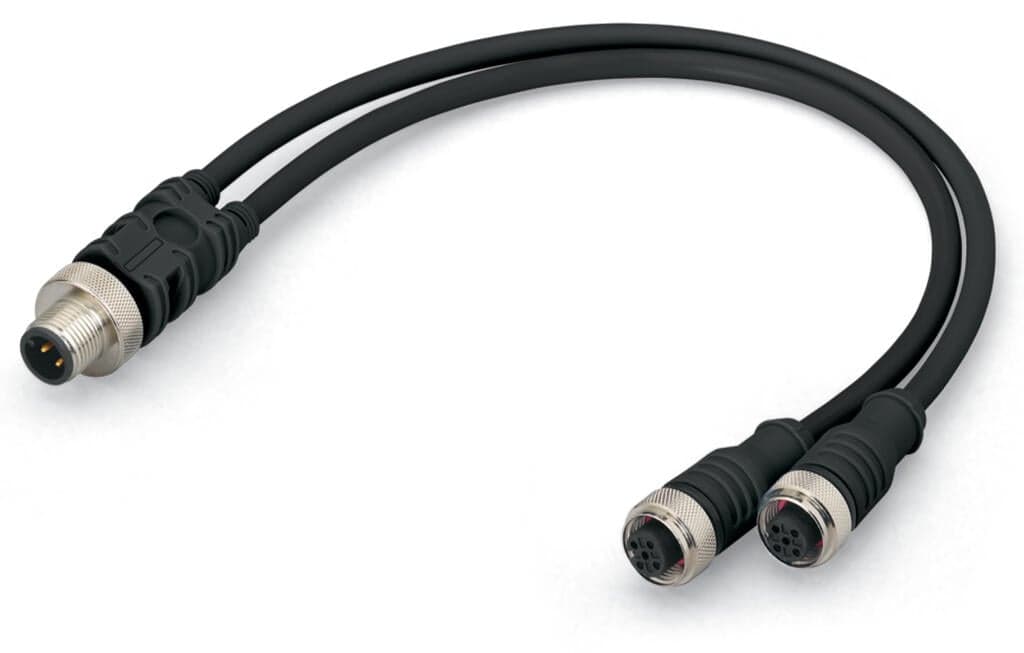

- 3Features 2x M12 sockets and a straight M12A plug.
- 4IP67 protection rating for robust performance.
- 5Suitable for use in demanding conditions with high resistance to microbes, hydrolysis, oil, chemicals, and UV radiation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918994859 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 24bae0a4-e45a-4cd0-bd8b-6141f1be65ee |
SCIP notification number (Belgium) | 211d30ff-8997-459b-b512-c7d3b1ce735f | SCIP notification number (Bulgaria) | ebcaea10-e291-47fa-a8f8-835a9652308e |
SCIP notification number (Czech Republic) | 920621f8-520f-4893-aba3-bacfc85282e2 | SCIP notification number (Denmark) | 75fca941-77f4-41a2-9625-da11ca94b47a |
SCIP notification number (Finland) | d2d2da97-9a53-4ee7-9bf2-1d452ed74fb2 | SCIP notification number (France) | 4da19154-a356-4f15-848d-582072ae3afb |
SCIP notification number (Germany) | af4bfeee-2d9d-4b7a-8926-f648ad06ea75 | SCIP notification number (Hungary) | 61222768-71ae-4472-bdc0-3c067aae0045 |
SCIP notification number (Italy) | c743716b-307c-4ff9-868c-737942b87226 | SCIP notification number (Netherlands) | a88acbc9-ffe1-4633-9543-5712d4029ead |
SCIP notification number (Poland) | 70823778-bb27-4fd9-b886-0d2475e7594a | SCIP notification number (Romania) | dfffc115-23d9-43ec-88c6-11268d79ec7c |
SCIP notification number (Sweden) | a437e2cc-cbb2-42c8-b363-c3b8435b0b11 | Operating voltage | 250?VAC/DC |
Operating current | 4A | Rated surge voltage | 2.5?kV |
Insulation resistance | >109Ω | Contact resistance | 10mΩ |
Conductor resistance | ≤ 60 Ω/km | Pollution degree | 3 per VDE 0110 |
Protection type | IP67 | Ambient (operating) temperature (static) | -50 … +90 °C |
Ambient (operating) temperature (dynamic) | -25 … +90 °C | Bending radius | 10 x cable diameter (min.) |
Bending cycles | 2Mio. | Acceleration (min.) | 5 |
Travel speed (max.) | 3.33 | Travel path (horizontal) max. | 5 |
Travel path (vertical) max. | 2 | Torsional capacity | 180 |
Cable length | 1m | Type code | LiF9YH-11YH or LiF9YC11YFHF |
Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) | Conductor insulation | PP9Y (halogen-free) |
Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing | Sheathed cable color | black |
Connection type | M12 Socket;?M12 Socket - M12 plug | Number of poles | 4 |
Cable connection direction to mating direction | 0° | Cable connection direction to mating direction (2) | 0° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Connector interface coding (cable/adapter) 1 2 | A-coded |
Connector interface coding (cable/adapter) 2 1 | A-coded | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 1?Nm |
Specifications may be subject to change without notice
