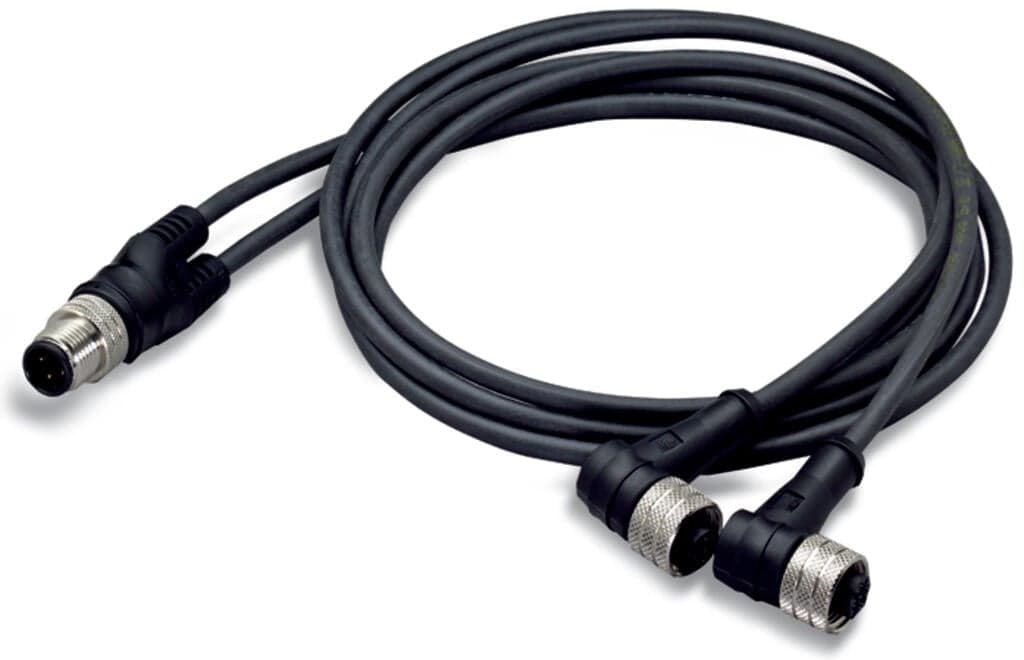

Product Model
756-5517/040-010
Selling Points
- 1Resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Suitable for drag chains and harsh industrial environments.
- 3Fitted on both ends with 4-pole configuration for seamless integration.
- 4Includes 2x M12 sockets (angled and straight) for versatile connection options.
- 5Halogen-free and PUR material ensures long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918994880 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 67eb14c7-2268-43bd-a641-aa0f8ec9bbef | SCIP notification number (Belgium) | a8acbfa7-186d-4eb0-b475-cada003c95b4 |
SCIP notification number (Bulgaria) | 3628e3bd-f104-48b0-8e81-7dd933129821 | SCIP notification number (Czech Republic) | 68ca1bf3-a487-45dc-99ed-72c7dc3bec2b |
SCIP notification number (Denmark) | 8f6f9350-d905-4560-a050-430829a2dc3a | SCIP notification number (Finland) | 1e8cf518-41ee-43e8-b0c9-f39be5338045 |
SCIP notification number (France) | 43a263f4-1276-4b7c-a435-fb6d3b3b9a9b | SCIP notification number (Germany) | 2f24d9e8-8e80-4e7c-8d8f-c7199be950e8 |
SCIP notification number (Hungary) | 1f2af183-0eda-4b73-9656-d2a687217b46 | SCIP notification number (Italy) | e43d897f-ac1d-487b-bba2-83dff3b6c284 |
SCIP notification number (Netherlands) | f7d585f7-d8c9-45b1-85df-0995aecd3a55 | SCIP notification number (Poland) | 9f4d9830-392a-47b4-98a8-70d2a59fbe21 |
SCIP notification number (Romania) | 6fb20af4-aa08-4782-8cf7-9aad980c5cdd | SCIP notification number (Sweden) | 1478e29f-a616-468a-8da5-48c454f06453 |
Operating voltage | 250?VAC/DC | Operating current | 4A |
Rated surge voltage | 2.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket;?M12 Socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Connector interface coding (cable/adapter) 1 2 | A-coded | Connector interface coding (cable/adapter) 2 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 1?Nm |
Specifications may be subject to change without notice
