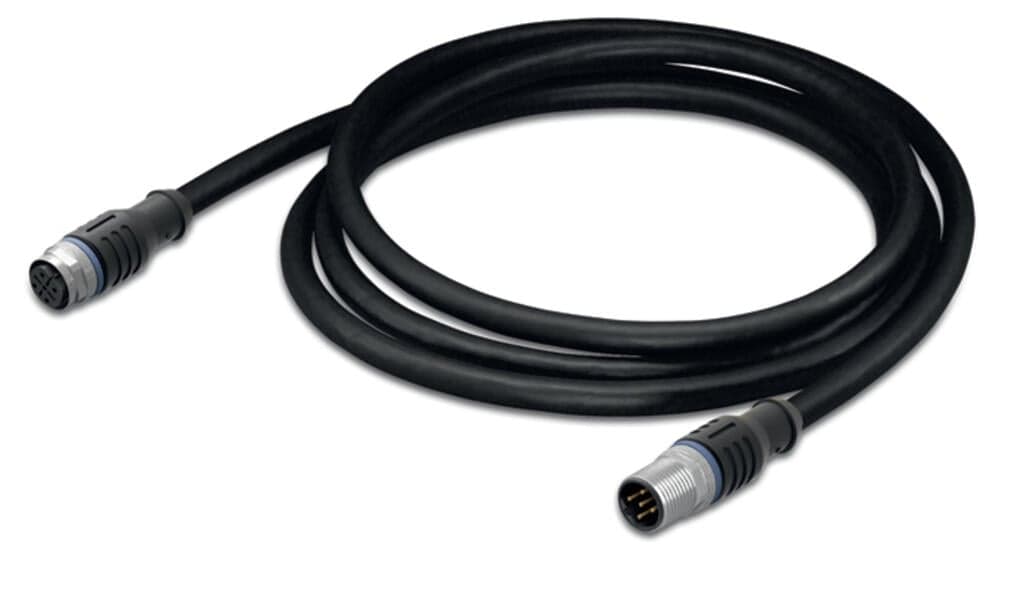

Product Model
756-6401/040-003
Selling Points
- 1Halogen-free insulation for safe and durable use.
- 2IP67 rating ensures protection against dust and water.
- 3Straight M12A connector for easy installation and connection.
- 44-pole design supports multiple signal transmission.
- 50.3 m length ideal for compact industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | unpacked | Country of origin | CN |
GTIN | 4066966488913 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | 300 VDC |
Protection type | IP67 | Ambient (operating) temperature (static) | -40 … +80 °C |
Ambient (operating) temperature (dynamic) | -20 … +60 °C | Cable length | 0.3m |
Sheathed cable color | black | Connection type | M12 Socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Connector interface coding (cable/adapter) 1 2 | A-coded |
Specifications may be subject to change without notice
