Product Model
756-6507/030-003
Selling Points
- 1Halogen-Free Design: Ensures safety and compliance in industrial environments.
- 23-Pole Configuration: Supports multiple connections for enhanced functionality.

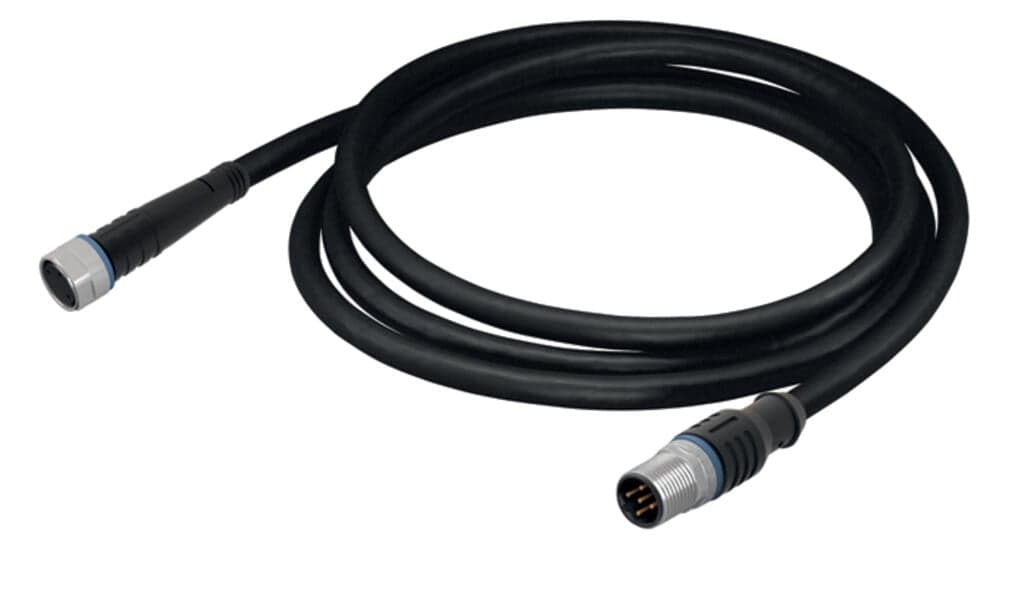

- 3M8 Socket and M12A Plug: Compatible with various industrial connectors for seamless integration.
- 4Polyurethane (PUR) Cable Sheath: Durable and resistant to environmental stressors.
- 5Operating Temperature Range: -25°C to 90°C, suitable for diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | unpacked | Country of origin | CN |
GTIN | 4066966488951 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | 300 VDC |
Protection type | IP67 | Ambient (operating) temperature (static) | -40 … +80 °C |
Ambient (operating) temperature (dynamic) | -20 … +60 °C | Cable length | 0.3m |
Sheathed cable color | black | Connection type | M8 socket - M12 plug |
Number of poles | 3 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 1 2 | A-coded |
Specifications may be subject to change without notice
