Product Model
756-6509/040-015
Selling Points

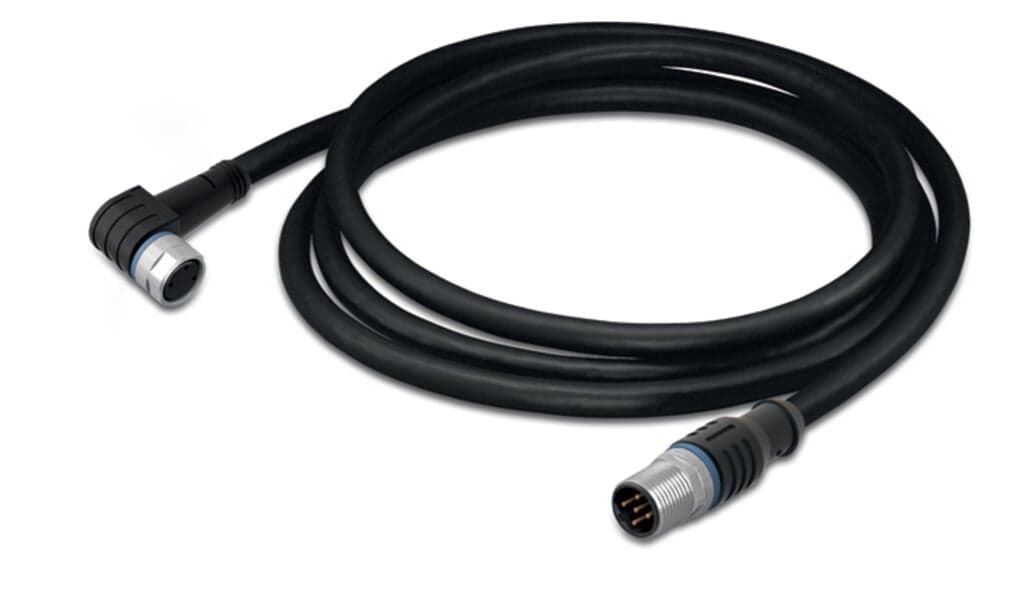

- 1High-Quality Connectivity: Reliable 4-pole cable with M8 socket and angled M12A plug.
- 2Industrial Grade: Suitable for drag chains and resistant to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 3Versatile Use: Ideal for sensor and actuator connections in various industrial settings.
- 4Compliant Standards: RoHS compliant with no exemption, ensuring environmental safety.
- 5Precise Length: Available in 1.5 meters length for precise wiring needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | unpacked | Country of origin | CN |
GTIN | 4066966495836 | Customs tariff number | 85444290900 |
RoHS Compliance Status | Compliant,No Exemption | Operating voltage | 300 VDC |
Protection type | IP67 | Ambient (operating) temperature (static) | -40 … +80 °C |
Ambient (operating) temperature (dynamic) | -20 … +60 °C | Cable length | 1.5m |
Sheathed cable color | black | Connection type | M8 socket - M12 plug |
Number of poles | 4 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 0° | Connector interface coding (cable/adapter) 1 2 | A-coded |
Specifications may be subject to change without notice
