Product Model

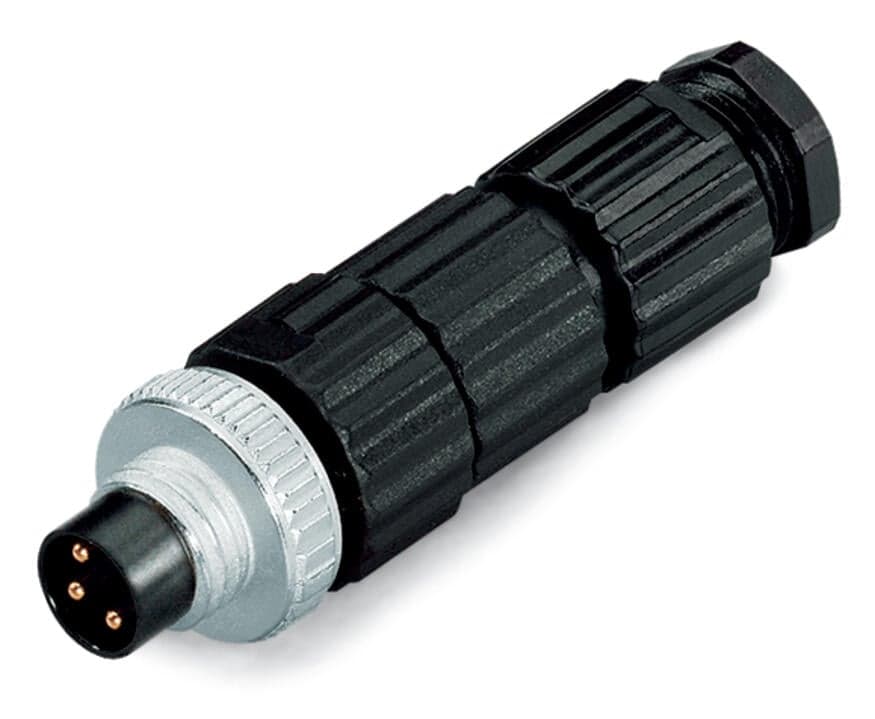

756-9102/030-000
Selling Points
- 13-pole M8 plug connector for secure connections.
- 2Suitable for sensor and actuator cables in various industrial applications.
- 3IP67 protection ensures reliability in harsh environments.
- 4RoHS compliant for environmental sustainability.
- 5Straight IDC connection technology for easy installation and use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M8 plug | Number of poles | 3 |
Cable connection direction to mating direction | 0° | Connection type 1 | Pin penetration technology |
Solid conductor | 0.14 … 0.34?mm2 | Connectable sheathed cable diameter | 4 … 5?mm |
Weight | 13.9g | Protection type | IP67 |
Fire load | 0.115MJ | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918977333 |
Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
