Product Model

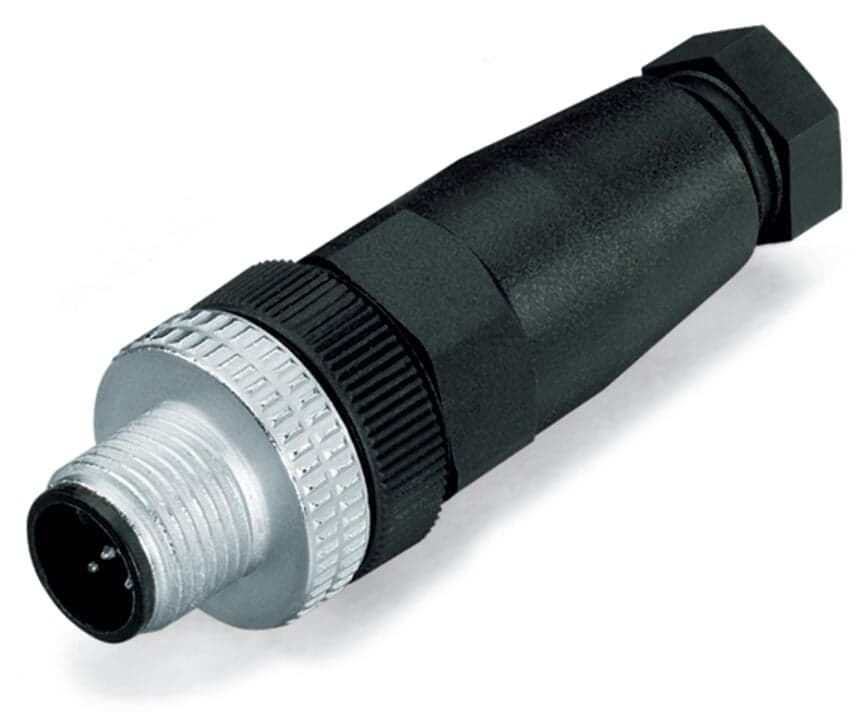

756-9201/050-000
Selling Points
- 1Withstands harsh environments and ensures reliable connectivity.
- 2Designed for complex control systems, facilitating smooth data communication.
- 3Meets environmental standards, ensuring eco-friendly operation.
- 4Compatible with various industrial applications, offering versatile connectivity options.
- 5Built with solid conductors (0.25-0.75 mm²) and gold-plated contacts for optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Screw clamp technology |
Solid conductor | 0.25 … 0.75?mm2 | Connectable sheathed cable diameter | 4 … 6?mm |
Housing material | PA | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
Mating cycles (max.) | 100 | Weight | 25g |
Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | HU |
GTIN | 4044918977463 | Customs tariff number | 8536694020 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
