Product Model

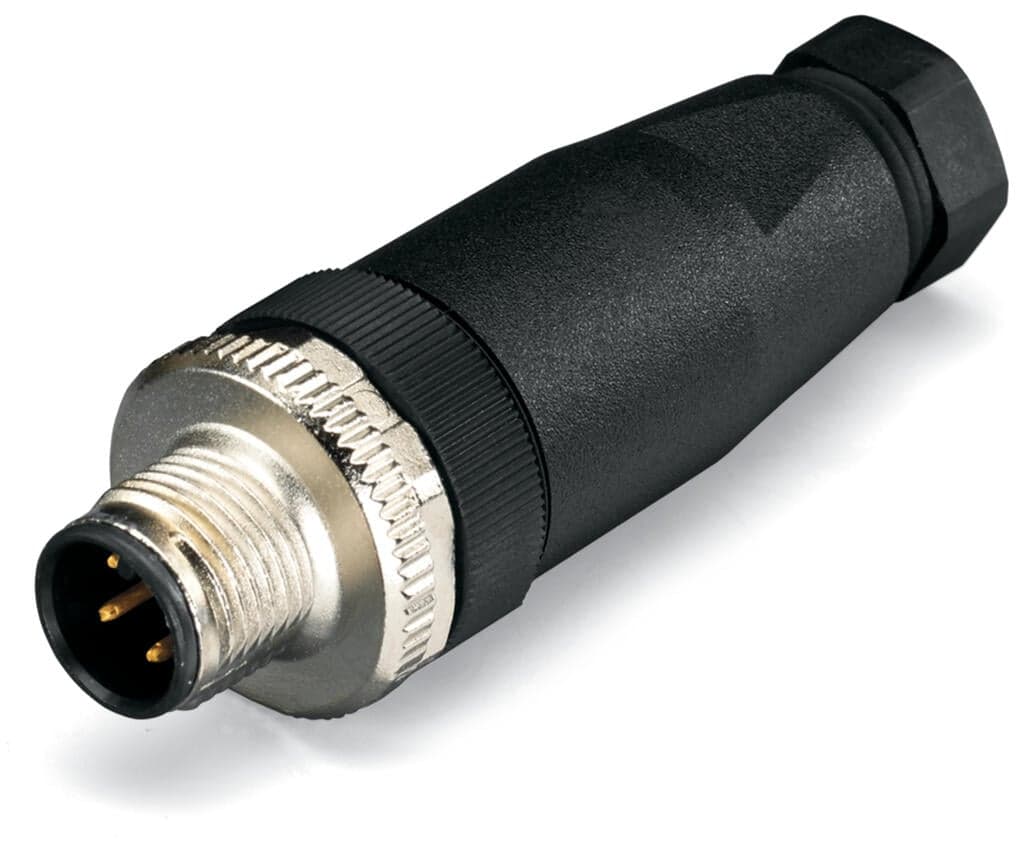

756-9202/050-000
Selling Points
- 1M12 Plug Connection: Secure and reliable connection for sensor/actuator cables.
- 2IP67 Protection: Durable and resistant to dust and water.
- 35-Pole Connectivity: Versatile and efficient for various applications.
- 4Spring-Loaded Design: Easy to connect and disconnect.
- 5Brand: WAGO: Trusted for high-quality electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Spring clamp technology |
Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG | Connectable sheathed cable diameter | 4 … 6?mm |
Housing material | PA | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
Mating cycles (max.) | 100 | Weight | 26g |
Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10 pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966596991 | Customs tariff number | 8536694020 |
CAS-No. | 96-45-7 | REACH Candidate List Substance | Ethylene thiourea |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 1584b16d-5594-44da-ae11-b841654a6b16 |
SCIP notification number (Belgium) | dc3fec86-5e34-464f-9cd7-7aa70e804743 | SCIP notification number (Bulgaria) | 333e465b-c1a1-478f-969a-56ae393aa34d |
SCIP notification number (Czech Republic) | a7af52c3-a071-4c1e-9199-1c6dd09ae205 | SCIP notification number (Denmark) | 6ac9b4d7-969f-47ea-bd59-26445023a676 |
SCIP notification number (Finland) | b12ad75a-00ea-4adc-97e5-6f7ab3893b79 | SCIP notification number (France) | 6b672191-6f8e-4947-8c61-47229889c2a1 |
SCIP notification number (Germany) | 9adc2780-5374-4b9c-81c1-8a95af7b8ad3 | SCIP notification number (Hungary) | ddcbb58f-b533-4160-8adb-632a17c0c4e8 |
SCIP notification number (Italy) | 89d7d4bf-b79b-49df-870b-4b184bfde51f | SCIP notification number (Netherlands) | 65881d0b-23f1-4ace-9330-03513620cc58 |
SCIP notification number (Poland) | f34862ef-4c35-4075-acf0-007f8c5713d9 | SCIP notification number (Romania) | 76ec696e-c4c7-4a97-84e1-ea879b47f28f |
SCIP notification number (Sweden) | 2e95a919-c4b5-4688-a265-524d3952aa0a |
Specifications may be subject to change without notice
