Product Model
756-9205/050-000
Selling Points
- 1High-Quality Design: Built with precision for reliable connections in automation systems.
- 2ROHS Compliant: Meets environmental standards for safe and sustainable use.

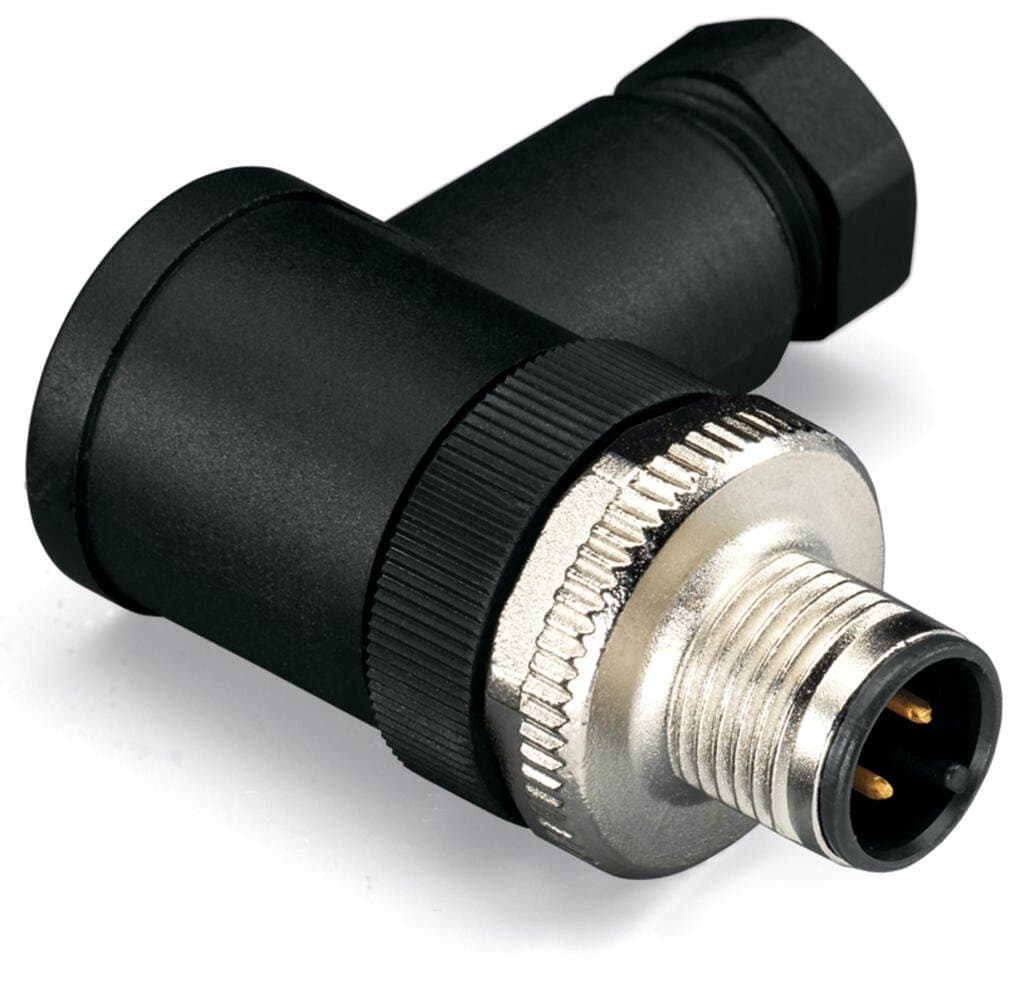

- 35-Pole M12 Plug: Angled connector for easy cable management and efficient signal transmission.
- 4Spring-Cage Pins: Securely holds pins in place, ensuring consistent performance over time.
- 5Versatile Application: Suitable for a wide range of sensor and actuator cable applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Spring clamp technology |
Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG | Connectable sheathed cable diameter | 4 … 6?mm |
Housing material | Polybutylene terephthalate (PBT) | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
Mating cycles (max.) | 100 | Weight | 25g |
Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10 pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966597325 | Customs tariff number | 8536694020 |
CAS-No. | 96-45-7 | REACH Candidate List Substance | Ethylene thiourea |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | f916375c-e96f-4894-bce4-4979e035093b |
SCIP notification number (Belgium) | 49ea8dfa-4c4b-4988-9d07-aa01fbab21f7 | SCIP notification number (Bulgaria) | 439cd7c9-4b2d-4d21-8c79-c8c563aa56c8 |
SCIP notification number (Czech Republic) | d0b68536-f607-42ad-80dc-79e4b45d6337 | SCIP notification number (Denmark) | 01f0d5fc-2088-47c3-a22d-50be6ac7879a |
SCIP notification number (Finland) | f0c6a696-0242-43ec-99f8-449b78dc9be4 | SCIP notification number (France) | 7c8aff6e-3839-476c-9676-a994e97f3f8d |
SCIP notification number (Germany) | 38f1cbe5-2cb9-4bf4-bec6-a0def3aae990 | SCIP notification number (Hungary) | 1b04d736-9bb9-4b8f-8136-9d6331d4eaa0 |
SCIP notification number (Italy) | dfd057a3-a792-4a26-9965-85ec6e6c9a2b | SCIP notification number (Netherlands) | 74cb18e6-cbb5-4a38-9fbb-062c2b799fa0 |
SCIP notification number (Poland) | 400faaf3-33a9-4199-9c38-07172f69f9a4 | SCIP notification number (Romania) | 9045836b-edae-456e-91c4-9144d372c35b |
SCIP notification number (Sweden) | e28734f4-a07e-41b0-a4c9-01b8923861b1 |
Specifications may be subject to change without notice
