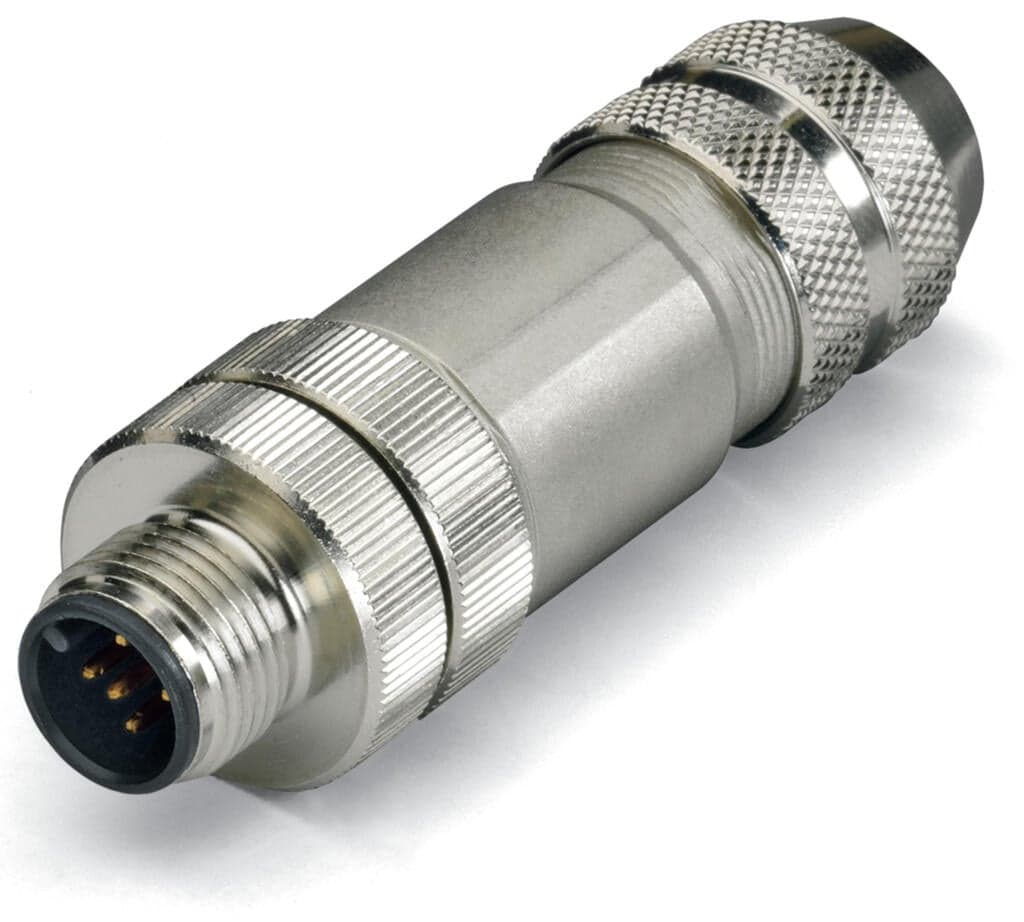

Product Model
756-9207/060-000
Selling Points
- 1Configurable Shielded Connector: Easily adaptable to various industrial control network configurations.
- 2IP67 Protection: Durable and resistant to harsh environments with a high level of protection against dust and water.
- 3M12 Plug Connection: Secure and reliable connection using the industry-standard M12 plug.
- 45-Pole Axial Configuration: Supports multiple connections with its 5-pole axial design.
- 5High-Quality Construction: Built with robust materials for long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Connection point (shielded) | yes | Cable connection direction to mating direction | 0° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Contact resistance | ≤3 mΩ |
Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG |
Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
Contact material | CuZn | Contact plating | Gold |
Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
Weight | 40g | Ambient temperature (operation) | -25 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966597400 |
Customs tariff number | 8536694020 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Ethylene thiourea | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 950395de-5fd6-4432-b6ae-c081f0845f89 |
SCIP notification number (Belgium) | a2a90132-2915-46d2-a74c-17cd39b98922 | SCIP notification number (Bulgaria) | a732023c-6278-42d3-bb67-43f38e233458 |
SCIP notification number (Czech Republic) | 2a1c60c8-92b0-4e57-965d-a3b08dd8e323 | SCIP notification number (Denmark) | 2a2e61c4-4cdd-42a0-be8f-8d278cd9c077 |
SCIP notification number (Finland) | de08279a-7411-45dd-82d7-b7b4d2094804 | SCIP notification number (France) | ce1b4bbe-fef2-4bf1-a640-251d1dcd7968 |
SCIP notification number (Germany) | 6c70cf96-7fb0-40fc-9433-cf90d5fc8b48 | SCIP notification number (Hungary) | c0aa842d-5cc5-4012-afb2-0b7cd1ff2541 |
SCIP notification number (Italy) | fda9f06c-f268-43a3-bb60-8dac2dd35d4a | SCIP notification number (Netherlands) | a087aafd-77df-443c-a702-59e307b1afaf |
SCIP notification number (Poland) | a2d7e949-a1cc-4356-8b78-73d186206dfa | SCIP notification number (Romania) | 569a03f7-1ad9-43bf-83ce-b4182298b507 |
SCIP notification number (Sweden) | 33938604-181f-4e12-8763-ff3d033c5af7 |
Specifications may be subject to change without notice
