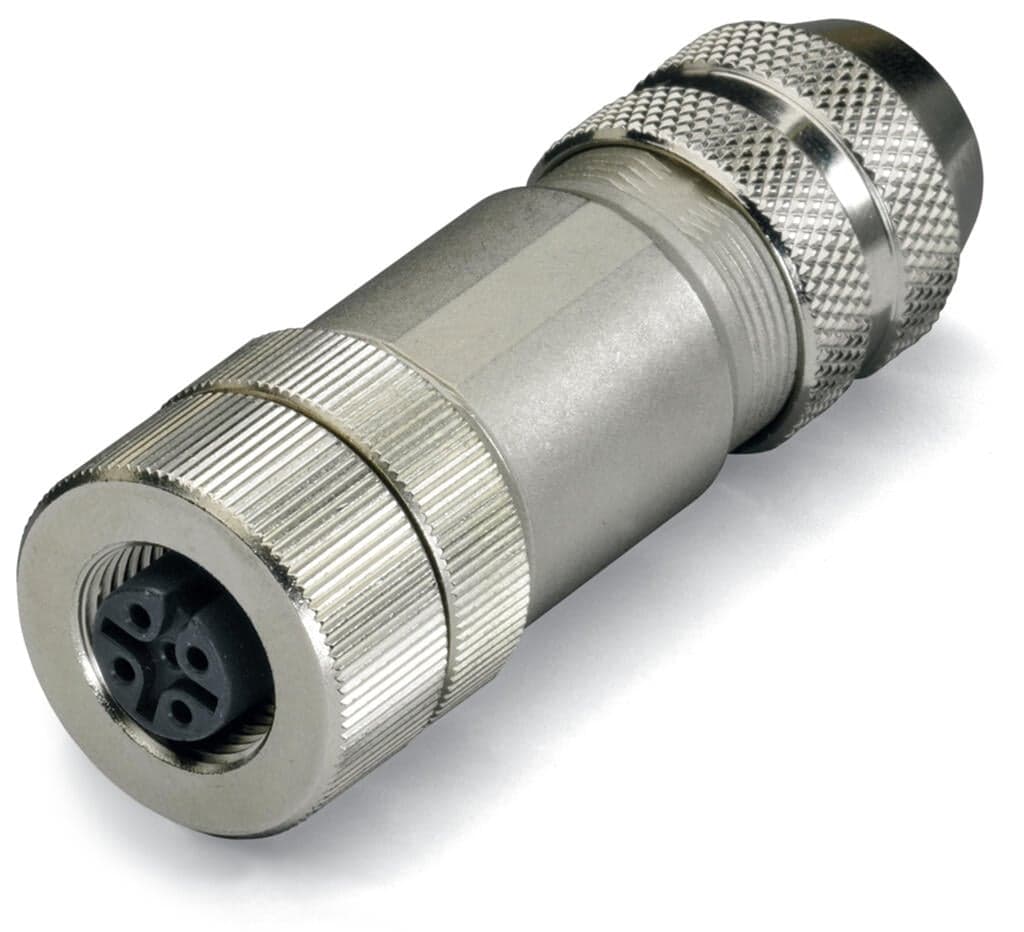

Product Model
756-9208/060-000
Selling Points
- 1IP67 Protection: Durable and resistant to harsh environments.
- 2A-Coded Configuration: Ensures secure and reliable connectivity.
- 35-Pole Connection: Supports multiple applications with high precision.
- 4M12 Socket Design: Easy installation and compatibility with various systems.
- 5Rohs Compliant: Meets international standards for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket | Number of poles | 5 |
Connection point (shielded) | yes | Cable connection direction to mating direction | 0° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Contact resistance | ≤3 mΩ |
Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG |
Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
Contact material | CuZn | Contact plating | Gold |
Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
Weight | 13.5g | Ambient temperature (operation) | -25 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966597165 |
Customs tariff number | 8536694020 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Ethylene thiourea | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 16e25611-3eeb-4e14-b0b0-9de9a531234a |
SCIP notification number (Belgium) | d7f6984a-4cb7-4c8c-bd73-2acbb374df66 | SCIP notification number (Bulgaria) | 985de51e-785e-4e70-adf3-58188d0c6789 |
SCIP notification number (Czech Republic) | 10d6bbe6-d59a-4415-a72a-d417e643940b | SCIP notification number (Denmark) | a484cf66-d079-4736-9535-f16e352bb862 |
SCIP notification number (Finland) | 8907b5a5-596a-47d6-b4a9-d83fce640916 | SCIP notification number (France) | 720795b0-332d-4c1a-b8a9-a5699509bd68 |
SCIP notification number (Germany) | b1617cb4-8d42-42bd-89a1-0ff12cc212b0 | SCIP notification number (Hungary) | 6d5253af-8255-4541-9380-c2d2391f0334 |
SCIP notification number (Italy) | ca8636a9-8058-4ea7-98f4-8ac75cabaa81 | SCIP notification number (Netherlands) | ca00f2b5-fc31-4129-ba42-528dc60495bb |
SCIP notification number (Poland) | 0e8b311b-5a94-4687-a89b-d98d330e6934 | SCIP notification number (Romania) | 8f46eb60-79b0-46ed-aade-54544ca45258 |
SCIP notification number (Sweden) | 01f7a7c0-e085-4294-9d13-7ea699328f21 |
Specifications may be subject to change without notice
