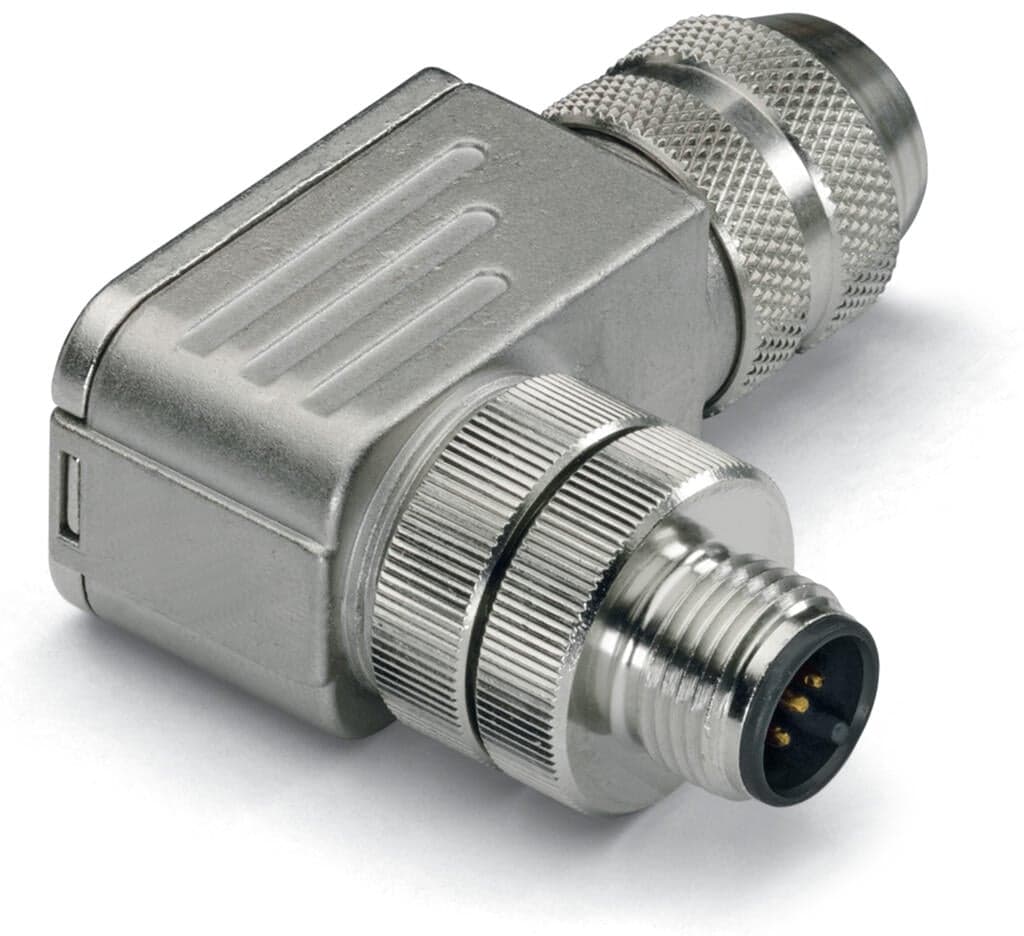

Product Model
756-9211/060-000
Selling Points
- 1High-performance industrial automation component designed for precision and reliability.
- 2Compatible with various control systems, ensuring seamless integration.
- 3Robust construction for long-lasting operation in harsh environments.
- 4Easy installation and configuration with intuitive interface.
- 5Optimized for complex control systems, enhancing system efficiency and accuracy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Connection point (shielded) | yes | Cable connection direction to mating direction | 90° |
Connector interface coding (cable/adapter) 1 1 | A-coded | Contact resistance | ≤3 mΩ |
Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG |
Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
Contact material | CuZn | Contact plating | Gold |
Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
Weight | 66.8g | Ambient temperature (operation) | -25 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966597240 |
Customs tariff number | 8536694020 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Ethylene thiourea | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | bca71f1b-9dd7-4ec1-a8c1-060f03d1b6e7 |
SCIP notification number (Belgium) | f340b577-e544-4c18-98ab-33cfc5e5270f | SCIP notification number (Bulgaria) | 52c569a7-c774-4710-8df8-f9ca3c590746 |
SCIP notification number (Czech Republic) | d8cf48be-b157-434e-8a47-f66a4fe1f6aa | SCIP notification number (Denmark) | 4b00036c-e3ec-4403-ba88-a89c04eb05e8 |
SCIP notification number (Finland) | 01218b4c-24e7-4c1f-ba89-754ed3cb4160 | SCIP notification number (France) | c290cbe9-404a-4dd8-aea2-e1e98114235f |
SCIP notification number (Germany) | c83dceea-6e7d-4fd5-8d80-cba41eb09e9c | SCIP notification number (Hungary) | e088384f-b2af-434d-ba9c-f90b29401a47 |
SCIP notification number (Italy) | 6ceedaff-f4f1-4589-82ff-58efb8bcdc0c | SCIP notification number (Netherlands) | b76ad3c8-8d0a-49f0-98a2-59741f76562a |
SCIP notification number (Poland) | 1ce481e5-9903-4c1a-a27b-1c0fb89c39af | SCIP notification number (Romania) | b79b6ede-223b-414c-bf6f-08e432e6e1bb |
SCIP notification number (Sweden) | 9a3a20ac-a964-4891-ae8c-1b8ffdc30d8d |
Specifications may be subject to change without notice
