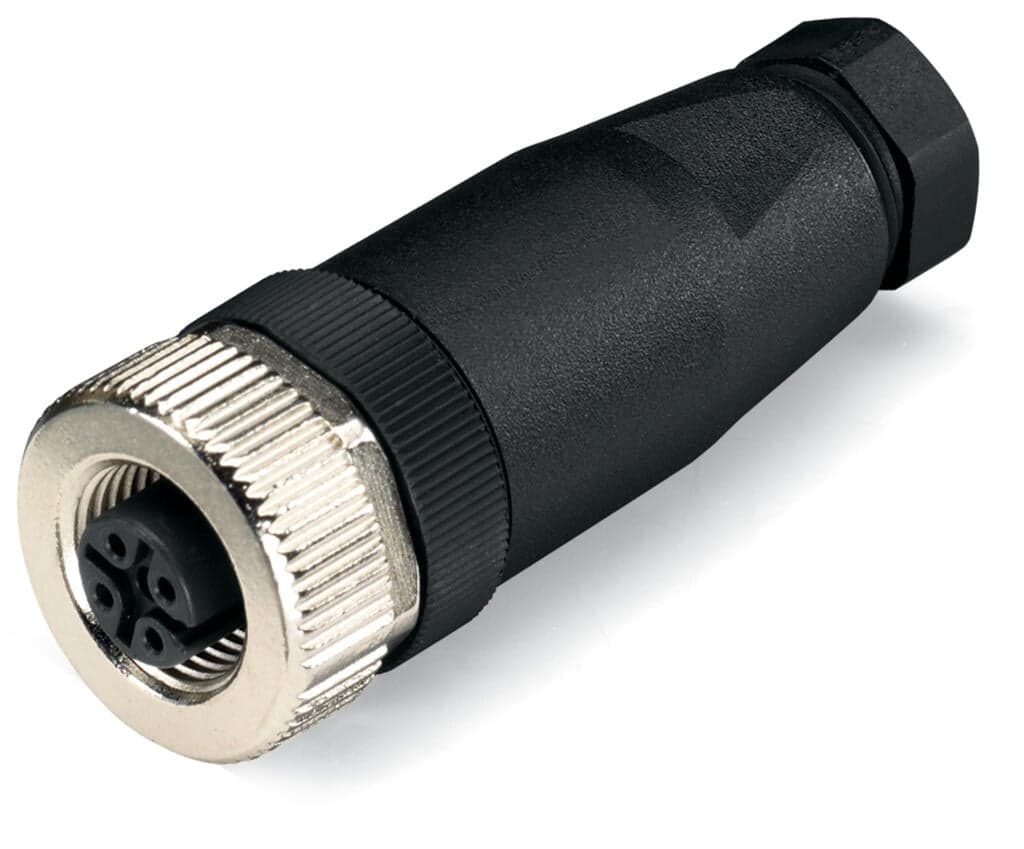

Product Model
756-9212/040-000
Selling Points
- 1High-quality, durable construction for long-lasting performance.
- 2Versatile design suitable for various industrial applications.
- 3Easy-to-use push-in connection technology for quick assembly.
- 4Robust and reliable in harsh environments with high vibration resistance.
- 5Compatible with a wide range of industrial systems and devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket | Number of poles | 4 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Spring clamp technology |
Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG | Connectable sheathed cable diameter | 4 … 6?mm |
Housing material | PA | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
Mating cycles (max.) | 100 | Weight | 25.3g |
Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10 (1) pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966603057 | Customs tariff number | 8536694020 |
CAS-No. | 96-45-7 | REACH Candidate List Substance | Ethylene thiourea |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | efa4cd2d-82d0-4cc2-a8cf-f5ff791fdef0 |
SCIP notification number (Belgium) | f731c219-927b-40d4-832a-9e81db2b7787 | SCIP notification number (Bulgaria) | 2ec96b6b-8183-44af-8921-503d01ef274f |
SCIP notification number (Czech Republic) | 6f09d619-cd9f-455b-9827-be6715b44c34 | SCIP notification number (Denmark) | fcfcb526-edb0-4d92-a128-06e91d3e130d |
SCIP notification number (Finland) | 1615ee44-d4a7-4bfc-919c-dd8347f3132f | SCIP notification number (France) | ac0c9066-88bc-4cef-8f87-e1a5badd008c |
SCIP notification number (Germany) | df874b28-cdeb-4334-a780-5db07d560c62 | SCIP notification number (Hungary) | 396542af-be67-4c69-9573-daa30a0cf8db |
SCIP notification number (Italy) | 297f212a-270f-4186-83fd-08800a87c078 | SCIP notification number (Netherlands) | 6f520990-f270-46a7-be26-62d490b97455 |
SCIP notification number (Poland) | 99e534cf-39b1-4415-b80d-99e609a027ed | SCIP notification number (Romania) | f9f6fdf4-cd9d-4995-96b6-f5d678a4e681 |
SCIP notification number (Sweden) | bfe63cb3-32cc-47f8-9231-881526176573 |
Specifications may be subject to change without notice
