Product Model
756-9216/050-000
Selling Points

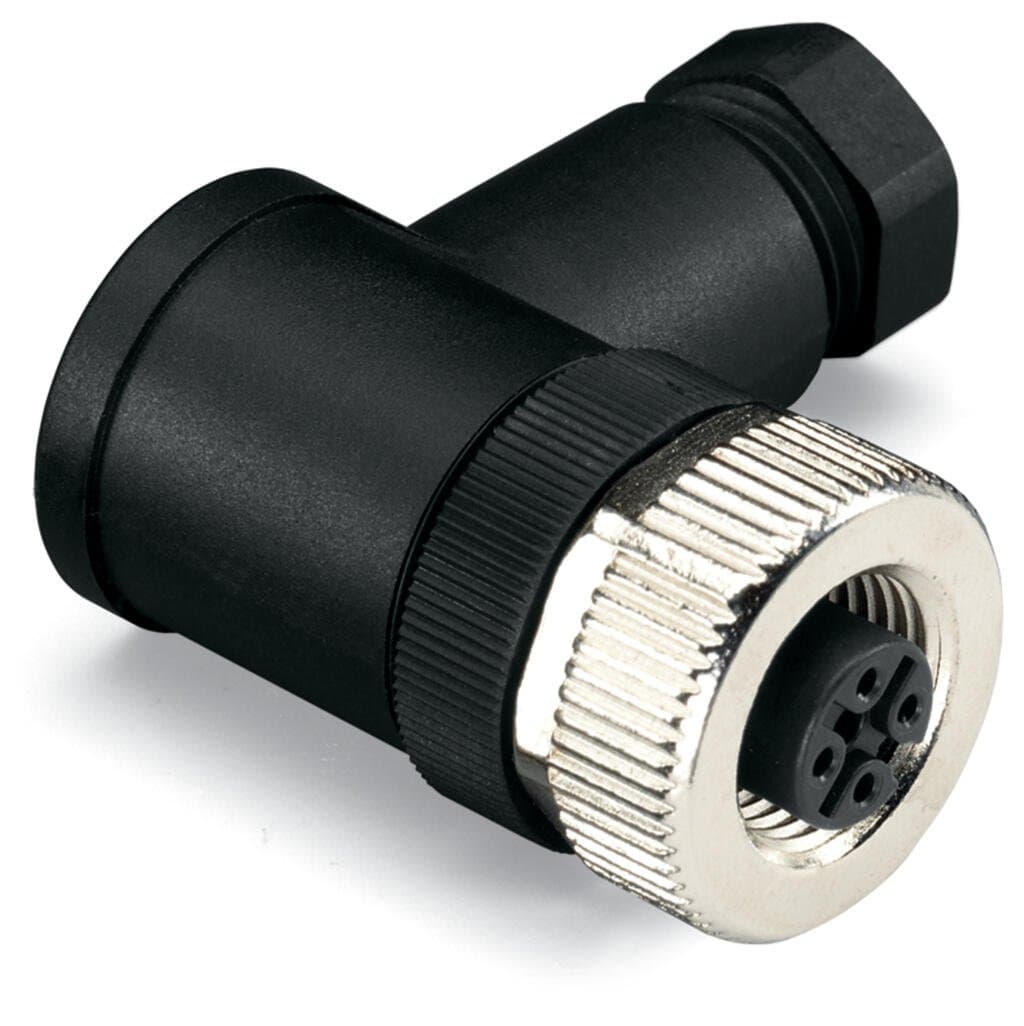

- 1Angled Design for Easy Installation: The WAGO 756-9216/050-000 features an angled M12 socket, making it easier to connect cables in tight spaces.
- 2High Reliability: With an IP67 protection rating, this connector ensures reliable performance in harsh environments.
- 3Spring Clamp Technology: The connector uses spring clamp technology for secure and efficient connections.
- 4Versatile Application: Suitable for a wide range of industrial applications, including sensor and actuator cable connections.
- 5Compact and Lightweight: Weighing only 31 grams, this connector is compact and easy to handle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 socket | Number of poles | 5 |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Spring clamp technology |
Solid conductor | 0.14 … 0.5?mm2 | Connectable sheathed cable diameter | 6 … 8?mm |
Housing material | Polybutylene terephthalate (PBT) | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
Mating cycles (max.) | 100 | Weight | 28g |
Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10 (1) pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966597523 | Customs tariff number | 8536694020 |
CAS-No. | 96-45-7 | REACH Candidate List Substance | Ethylene thiourea |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | ef33e5f5-5a92-4ed5-b567-339aab28fa38 |
SCIP notification number (Belgium) | 1ca1483a-883d-4c4a-8b39-42e0e122b970 | SCIP notification number (Bulgaria) | e6462814-4bf8-411c-86fe-edc9b92232b3 |
SCIP notification number (Czech Republic) | f7d9c7d1-817a-470d-bc8d-d9bcc6886621 | SCIP notification number (Denmark) | ad83b90b-b408-4731-bfe4-c09380bc0f04 |
SCIP notification number (Finland) | 5b54cb5d-0d49-4919-af72-a1a120bd6c79 | SCIP notification number (France) | 5d2abcb1-a6ef-4d1d-b785-e15f260c4708 |
SCIP notification number (Germany) | 3dd330be-43d4-47bb-96a2-fa6c89dd9c79 | SCIP notification number (Hungary) | 4713c47d-4ce1-46fe-a0af-968d39f3c852 |
SCIP notification number (Italy) | 66aeb81b-a4a2-4e19-8fdb-74b864526109 | SCIP notification number (Netherlands) | 2d54b208-d5cf-4a40-ba3f-5dd7d98092ea |
SCIP notification number (Poland) | 24b96647-bf68-445c-815a-ad98769d3c6f | SCIP notification number (Romania) | 6c7a2692-6a56-424f-a608-902a86998a0a |
SCIP notification number (Sweden) | 9d33270a-b0be-4358-8585-efffe5a78faf |
Specifications may be subject to change without notice
