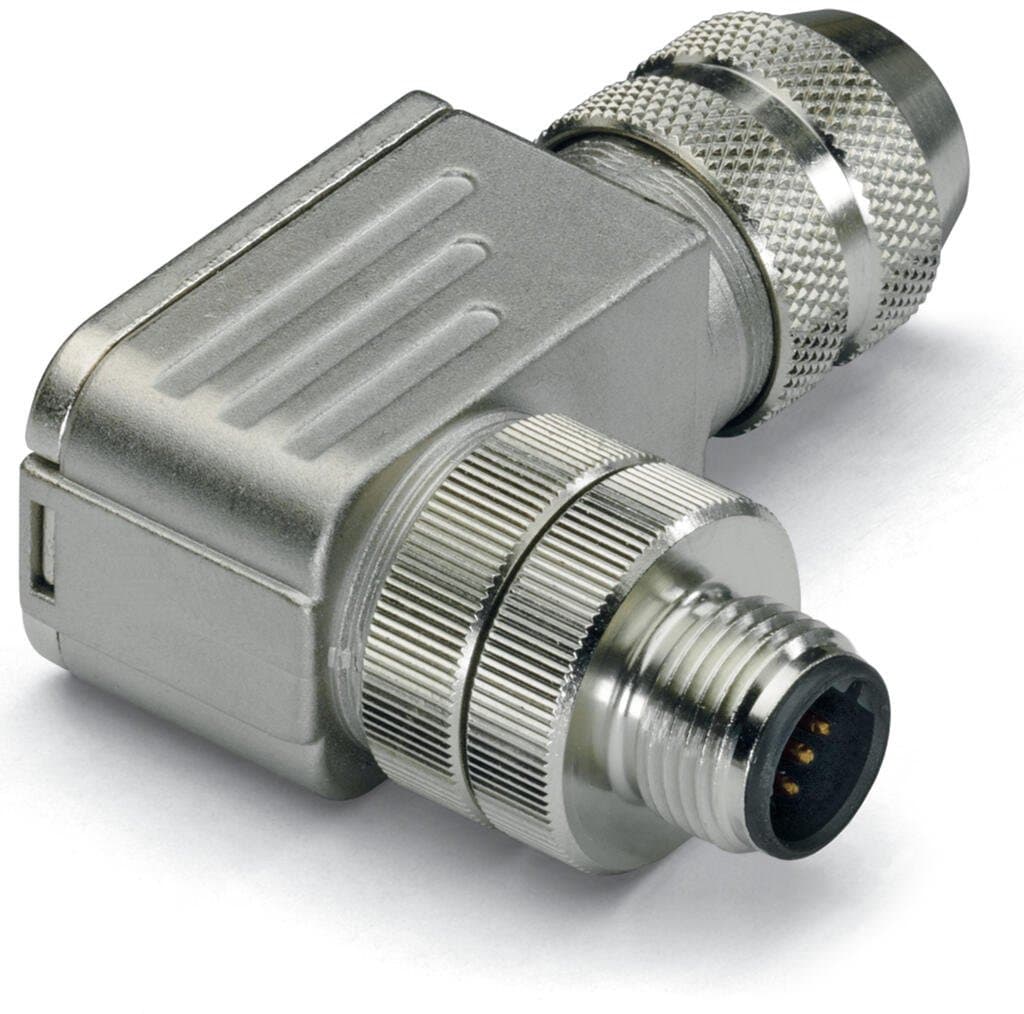

Product Model
756-9403/060-000
Selling Points
- 1Built to withstand harsh industrial environments.
- 2Ensures consistent performance in critical operations.
- 3Simple and quick connection process for efficient setup.
- 4Compatible with various industrial systems and devices.
- 5Meets or exceeds industry safety standards for secure operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Connection point (shielded) | yes | Cable connection direction to mating direction | 90° |
Connector interface coding (cable/adapter) 1 1 | B-coded | Contact resistance | ≤3 mΩ |
Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG |
Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
Contact material | CuZn | Contact plating | Gold |
Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
Weight | 65.6g | Ambient temperature (operation) | -40 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966597707 |
Customs tariff number | 8536694020 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Ethylene thiourea | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | c41259f7-0d8d-49d1-bcfb-8bae25094c1d |
SCIP notification number (Belgium) | 5769a8eb-6bc6-43ed-b720-0c2053a94a4f | SCIP notification number (Bulgaria) | 3907bf19-2f8d-44f1-868d-25282508a936 |
SCIP notification number (Czech Republic) | 7df74167-2aa8-4787-9556-0a6cc65290c7 | SCIP notification number (Denmark) | 74e82189-6a29-40a5-ae8f-2a8fb1386a09 |
SCIP notification number (Finland) | 2092b965-df4f-4852-a419-808e0c906ed1 | SCIP notification number (France) | a5a78c25-57d5-4692-89be-66d525cd281e |
SCIP notification number (Germany) | 65efa2c7-2900-47ef-8e3c-82033fdae91d | SCIP notification number (Hungary) | e640518a-8f78-4680-9b57-a0a04042a513 |
SCIP notification number (Italy) | 729f861f-4595-419e-8694-eb37ccd26bfc | SCIP notification number (Netherlands) | 995b7c7d-d96e-403e-83cc-0194fed3b189 |
SCIP notification number (Poland) | b1a7ac9c-1af2-4313-9819-8006bafe2d20 | SCIP notification number (Romania) | 6cc1a58a-7ede-4502-8474-43eee1f2ffa0 |
SCIP notification number (Sweden) | a067149f-4b87-4df1-a4ac-d2037132463a |
Specifications may be subject to change without notice
