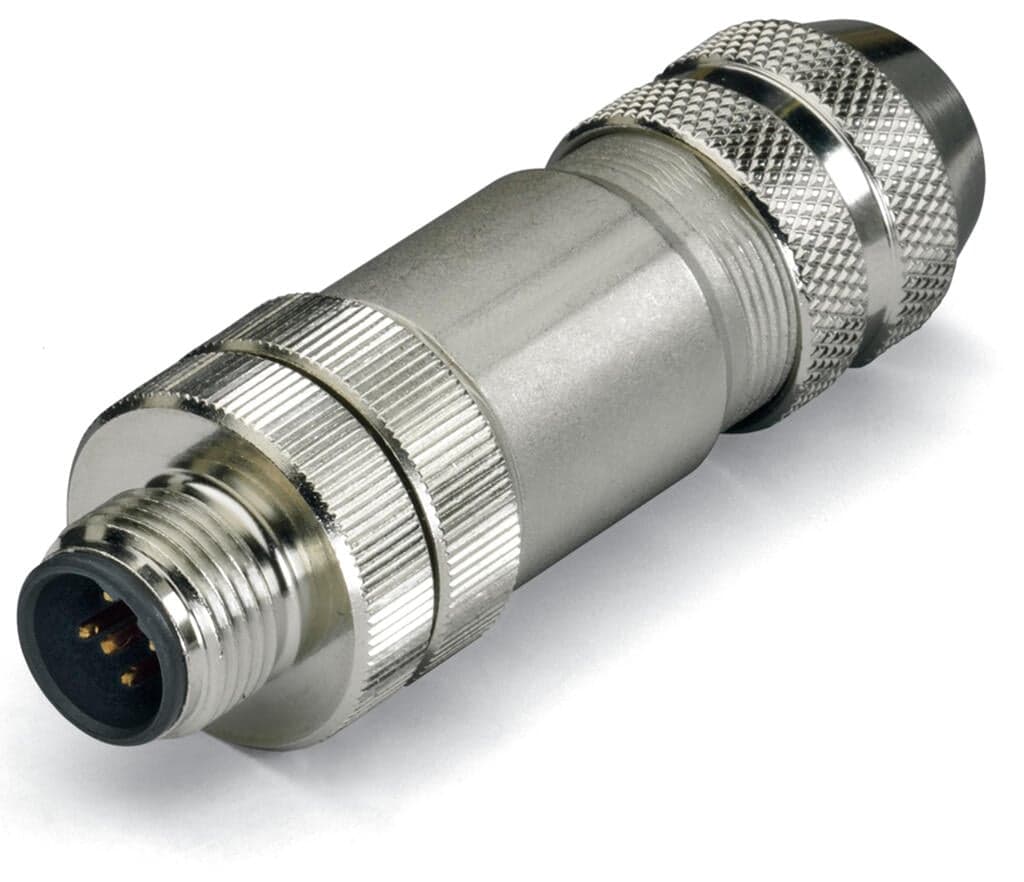

Product Model
756-9411/060-000
Selling Points
- 1High-quality, durable construction for long-lasting performance.
- 2Versatile connectivity options for seamless integration.
- 3Compact design for space-efficient installations.
- 4Easy-to-use interface for simplified setup and operation.
- 5Compatible with a wide range of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When assembling S-Bus cables, crimp the four ground wires together in a 0.75 mm2 ferrule and connect them to pin 5.S-Bus = System Bus | Connection type | M12 plug |
Number of poles | 5 | Connection point (shielded) | yes |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Screw clamp technology |
Solid conductor | 0.14 … 0.75?mm2?/ 20?AWG | Connectable sheathed cable diameter | 6 … 8?mm |
Housing material | Die-cast zinc, nickel-plated | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton |
Mating cycles (max.) | 100 | Weight | 46g |
Ambient temperature (operation) | -40 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143121538 |
Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
