Product Model

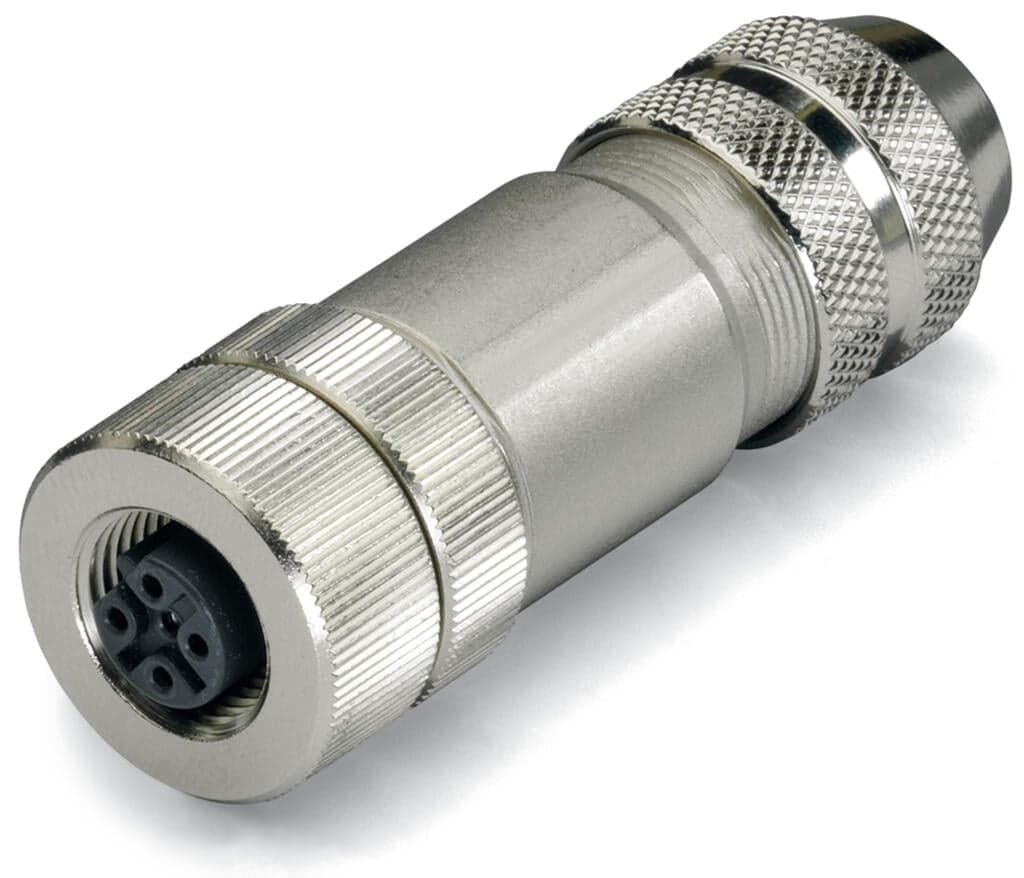

756-9412/060-000
Selling Points
- 1High-quality materials ensure long-lasting performance.
- 2Easy-to-use design simplifies installation and maintenance.
- 3Compact size fits in tight spaces without compromising functionality.
- 4Compatible with a wide range of electrical systems and applications.
- 5Durable and resistant to environmental factors like moisture and temperature changes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When assembling S-Bus cables, crimp the four ground wires together in a 0.75 mm2 ferrule and connect them to pin 5.S-Bus = System Bus | Connection type | M12 socket |
Number of poles | 5 | Connection point (shielded) | yes |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Screw clamp technology |
Solid conductor | 0.14 … 0.75?mm2?/ 20?AWG | Connectable sheathed cable diameter | 6 … 8?mm |
Housing material | Die-cast zinc, nickel-plated | Contact material | CuZn |
Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton |
Mating cycles (max.) | 100 | Weight | 46g |
Ambient temperature (operation) | -40 … +85 °C | Protection type | IP67 |
Note on protection type | in locked state | Pollution degree | 3 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966596205 |
Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 35aee828-56bd-4627-8b13-943a61a86edf |
SCIP notification number (Belgium) | a710d15c-ba42-4970-a59c-5a17bcaa81fa | SCIP notification number (Bulgaria) | c7cfc3dd-351d-428f-a3bf-229f4086698d |
SCIP notification number (Czech Republic) | 30f4a943-b1e4-4923-bde4-f49bede34294 | SCIP notification number (Denmark) | dca85561-c46f-4867-b049-7a058f8a4070 |
SCIP notification number (Finland) | 443c91d4-4b2a-4d3d-bcf5-96b054f94e96 | SCIP notification number (France) | 441add3a-9d51-4dd0-af1a-d9bfc23330fd |
SCIP notification number (Germany) | 1c5bf68e-ceea-43b3-aea6-79b2667d5504 | SCIP notification number (Hungary) | 27315336-28e5-426f-834f-caae5bff3552 |
SCIP notification number (Italy) | afb0571f-7d1d-49ab-9eb7-673d359f2ed7 | SCIP notification number (Netherlands) | 705c8721-b5e5-47eb-a961-2a728d942801 |
SCIP notification number (Poland) | 77b135b3-5782-4014-8523-c0acf3aa88b5 | SCIP notification number (Romania) | bab438d0-bb18-48d5-9d8a-308b962f7dbc |
SCIP notification number (Sweden) | cb9c0d57-04c7-470b-b646-1ce0fb331b9b |
Specifications may be subject to change without notice
