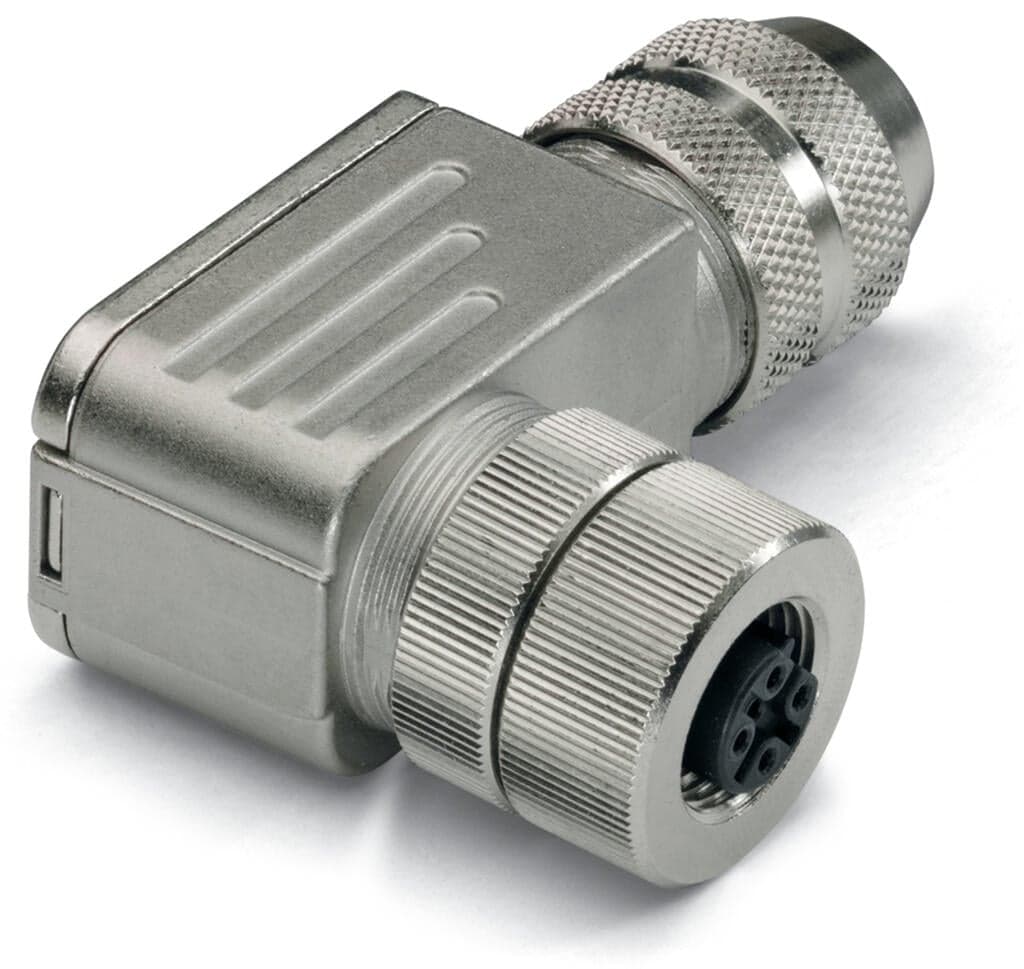

Product Model
756-9414/060-000
Selling Points
- 1High-performance signal conditioning for precise control.
- 2Compact design with minimal space requirements.
- 3Robust and reliable operation in harsh environments.
- 4Easy integration with various control systems.
- 5Enhanced signal quality for accurate data transmission.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | When assembling S-Bus cables, crimp the four ground wires together in a 0.75 mm2 ferrule and connect them to pin 5.S-Bus = System Bus | Connection type | M12 socket |
Number of poles | 5 | Connection point (shielded) | yes |
Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | B-coded |
Contact resistance | ≤3 mΩ | Connection type 1 | Screw clamp technology |
Solid conductor | 0.14 … 0.75?mm2?/ 20?AWG | Connectable sheathed cable diameter | 6 … 8?mm |
Housing material | Die-cast zinc, nickel-plated | Contact material | CuZn |
Contact plating | Gold | Mating cycles (max.) | 100 |
Weight | 44g | Ambient temperature (operation) | -40 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | Product Group | 23 (I/O passive and accessories) |
eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10 pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966597615 | Customs tariff number | 8536694020 |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 5022108f-d764-49f8-a03f-ad55ca464804 | SCIP notification number (Belgium) | 4a6dcbc1-41b9-4fa9-86b8-2a0f4473ad70 |
SCIP notification number (Bulgaria) | 27a7d964-9669-487c-8874-b5798339f009 | SCIP notification number (Czech Republic) | a8f85cd6-f8a1-467c-b7f5-833b28cd8bd1 |
SCIP notification number (Denmark) | 068316e7-7645-4548-b0dc-b0e119c7f6d7 | SCIP notification number (Finland) | 34d4b98d-ef75-48c2-a162-f25bf50f0c7c |
SCIP notification number (France) | 13f5153a-17b6-4c87-9cec-bb71aac00a10 | SCIP notification number (Germany) | 247495a0-7661-4aad-b3f5-1e3e1991e56d |
SCIP notification number (Hungary) | 496ba34b-678b-442c-98f7-4b018157637a | SCIP notification number (Italy) | 77d0c23b-4da6-481f-9f71-fcf5997239f7 |
SCIP notification number (Netherlands) | 0b87e1d9-314f-4425-b7b2-992d4c839dd4 | SCIP notification number (Poland) | 047af9fb-8583-470c-9a43-5d56f501c67e |
SCIP notification number (Romania) | 829849b4-8e5a-425a-a156-a00a9c5b731d | SCIP notification number (Sweden) | 6caf4326-ccfb-46e4-9c06-f0f9f1a41816 |
Specifications may be subject to change without notice
