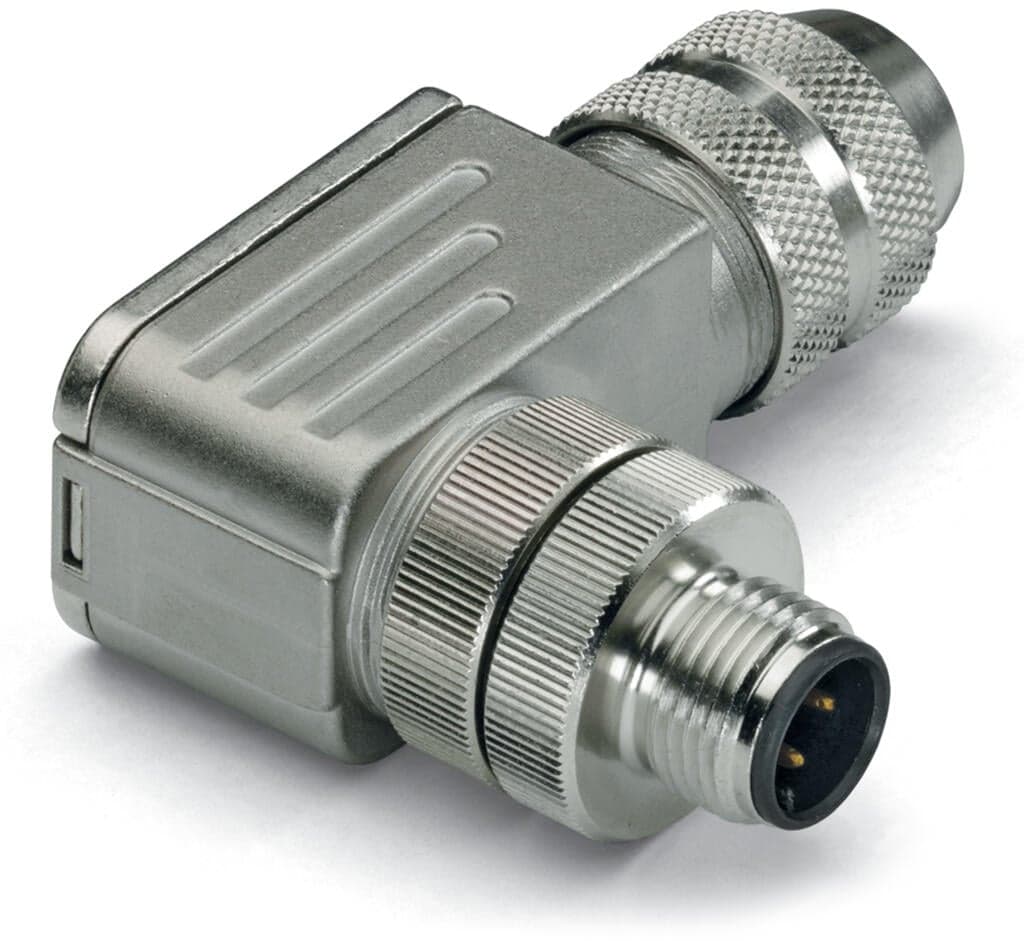

Product Model
756-9501/040-000
Selling Points
- 1D-Coded and Angled Design: Ensures precise and reliable connections in various electrical applications.
- 2Configurable Shielded Connectors: Allows for customization to meet specific system requirements.
- 3IP67 Protection: Provides robust protection against dust and water, ensuring long-term reliability.
- 44-Pole M12 Plug: Offers four poles for multiple connections in a single plug.
- 5Rohs Compliant: Meets stringent environmental and health standards for safe use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 4 |
Connection point (shielded) | yes | Cable connection direction to mating direction | 90° |
Connector interface coding (cable/adapter) 1 1 | D-coded | Contact resistance | ≤3 mΩ |
Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2?/ 20?AWG |
Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
Contact material | CuZn | Contact plating | Gold |
Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
Weight | 6.5g | Ambient temperature (operation) | -25 … +85 °C |
Protection type | IP67 | Note on protection type | in locked state |
Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966597738 |
Customs tariff number | 8536694020 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Ethylene thiourea | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ff972a3c-3afe-44c9-8e84-e8554d329828 |
SCIP notification number (Belgium) | 0a627ea3-f7d0-482e-afc5-46199e404987 | SCIP notification number (Bulgaria) | cf8c9d48-d03d-4e7b-8a23-fcdffeb674aa |
SCIP notification number (Czech Republic) | fdb2940c-8d35-402f-9666-d5cfd596ac05 | SCIP notification number (Denmark) | 119d121a-ccd0-4b3f-ab2d-890d34e45397 |
SCIP notification number (Finland) | 673c51c3-56a1-467e-89c7-9a1b11a987c3 | SCIP notification number (France) | b655a432-2fd0-415d-830c-fb909626cd35 |
SCIP notification number (Germany) | 85b2780d-d4b5-4db7-9ac8-e426911e3d73 | SCIP notification number (Hungary) | 4bb12c28-d93a-4a67-9a46-6d16e017d687 |
SCIP notification number (Italy) | 712c4d0d-70d4-4a98-bff3-d15295f4403f | SCIP notification number (Netherlands) | d32ed57e-72f9-4529-898a-5aca2c840dad |
SCIP notification number (Poland) | a6494cb7-4ea8-466b-8889-224e3aa61080 | SCIP notification number (Romania) | c520367b-436a-45cf-91d8-51e86b2a8f05 |
SCIP notification number (Sweden) | 76aadcac-4635-454c-9c28-109ecad0d1ec |
Specifications may be subject to change without notice
