Product Model
756-9602/060-000
Selling Points

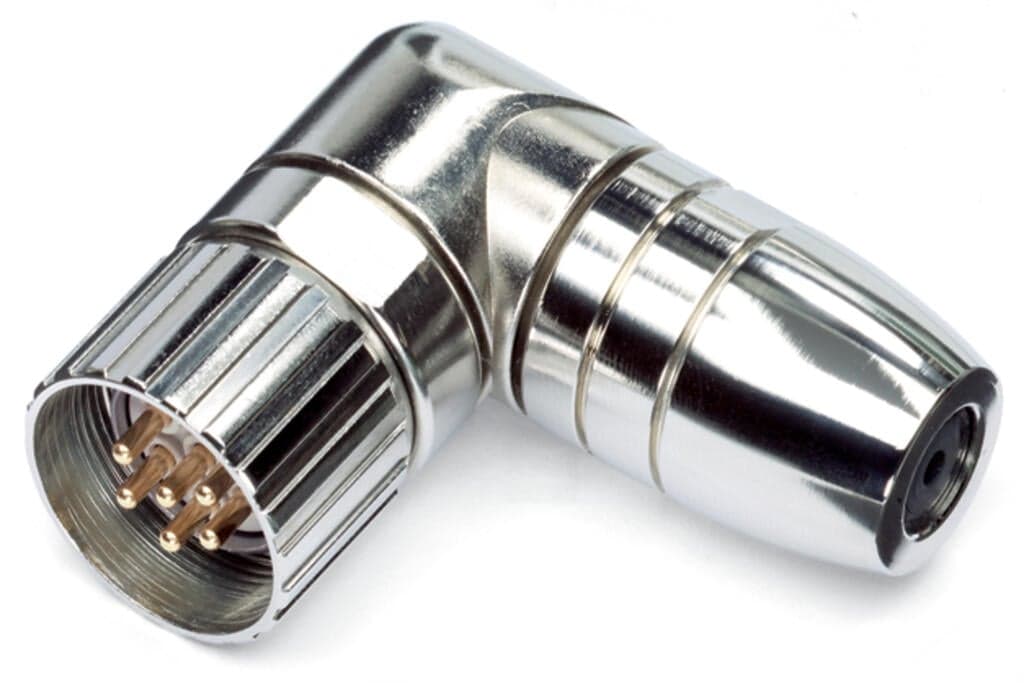

- 1Reliable Electrical Connection: The WAGO 756-9602/060-000 M23 angled plug ensures a secure and reliable electrical connection with its 6 poles and IP67 protection.
- 2Configurable Design: This plug is configurable, allowing for easy integration into various electrical systems.
- 3High Durability: With a solid conductor of 2.5 mm and a connectable sheathed cable diameter of 2 x 10.5 mm, it offers high durability and resistance to environmental factors.
- 4Easy Installation: The plug features soldering technology for easy installation, making it a convenient choice for electrical engineers.
- 5Compliance and Compatibility: The WAGO 756-9602/060-000 is compliant with ROHS standards and is designed to ensure compatibility with a wide range of electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M23 plug | Number of poles | 6 |
Cable connection direction to mating direction | 90° | Connection type 1 | Soldering technology |
Solid conductor | 2.5?mm2 | Connectable sheathed cable diameter | 2 … 10.5?mm |
Weight | 142.5g | Protection type | IP67 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454434793 |
Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
