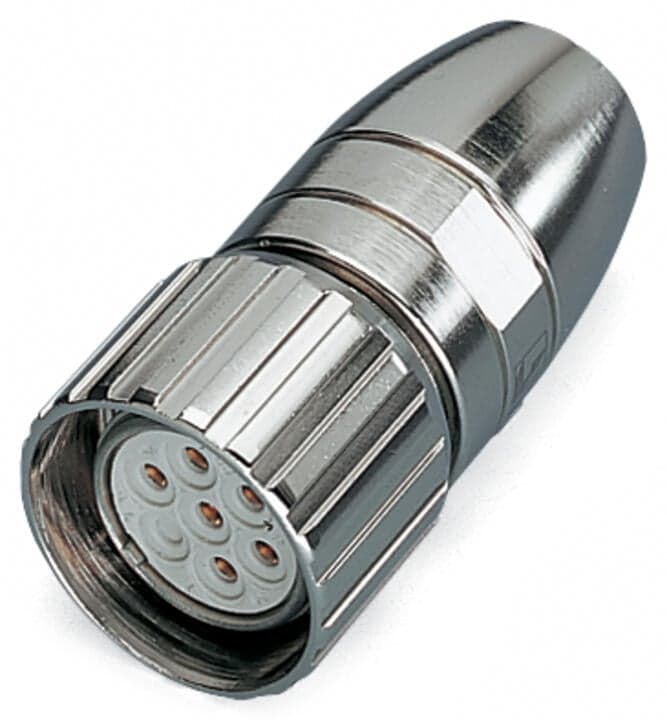

Product Model
756-9603/060-000
Selling Points
- 1Robust Connectivity: Designed for reliable connections in harsh industrial environments with IP67 protection.
- 2Configurable 6-Pole: Configurable 6-pole M23 socket connector for versatile applications.
- 3Soldering Technology: Utilizes soldering technology for secure connections.
- 4Compact Design: Compact design with a connectable sheathed cable diameter of 6.5 to 10.5 mm.
- 5Compliant with Standards: Compliant with RoHS standards, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M23 socket | Number of poles | 6 |
Cable connection direction to mating direction | 0° | Connection type 1 | Soldering technology |
Solid conductor | 2.5?mm2 | Connectable sheathed cable diameter | 6.5 … 10.5?mm |
Weight | 72.7g | Protection type | IP67 |
Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-24-26-92 |
eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454434809 |
Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
