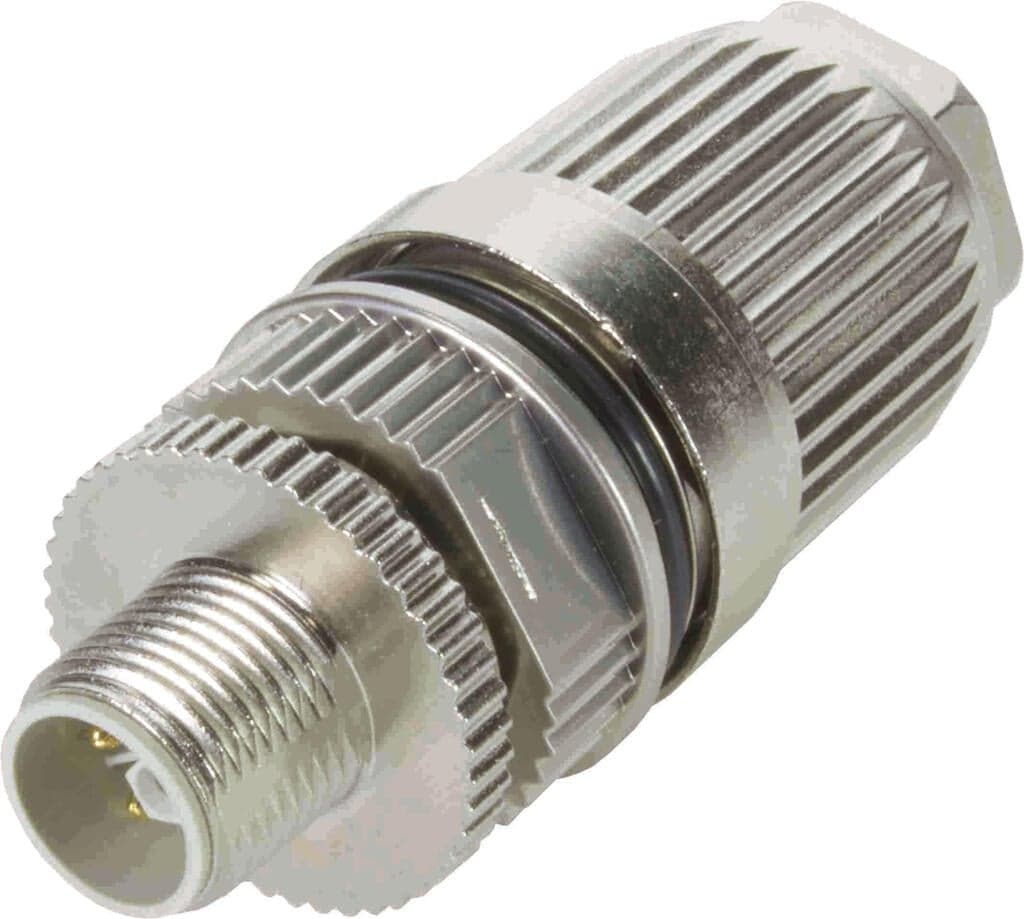

Product Model
756-9701/050-000
Selling Points
- 1High-quality materials ensure durability and long-lasting performance.
- 2Easy-to-use design simplifies installation and maintenance processes.
- 3Compact size fits perfectly in tight spaces, ideal for industrial applications.
- 4Secure connections provide reliable electrical connections in demanding environments.
- 5Versatile compatibility with various wiring systems and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | M12 plug | Number of poles | 5 |
Cable connection direction to mating direction | 0° | Connector interface coding (cable/adapter) 1 1 | L-coded |
Rated surge voltage | 1.5?kV | Contact resistance | 10mΩ |
Insulation resistance | >108Ω | Connection type 1 | Pin penetration technology |
Solid conductor | 0.75 … 1.5?mm2?/ 18 … 16?AWG | Housing material | Zinc die casting |
Tightening torque | 0.6?Nm | Weight | 84.7g |
Ambient temperature (operation) | -40 … +85 °C | Protection type | IP65 |
Note on protection type | IP67 when mated; per IEC 60529 | Pollution degree | 3 |
ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | RO |
GTIN | 4055144018400 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
