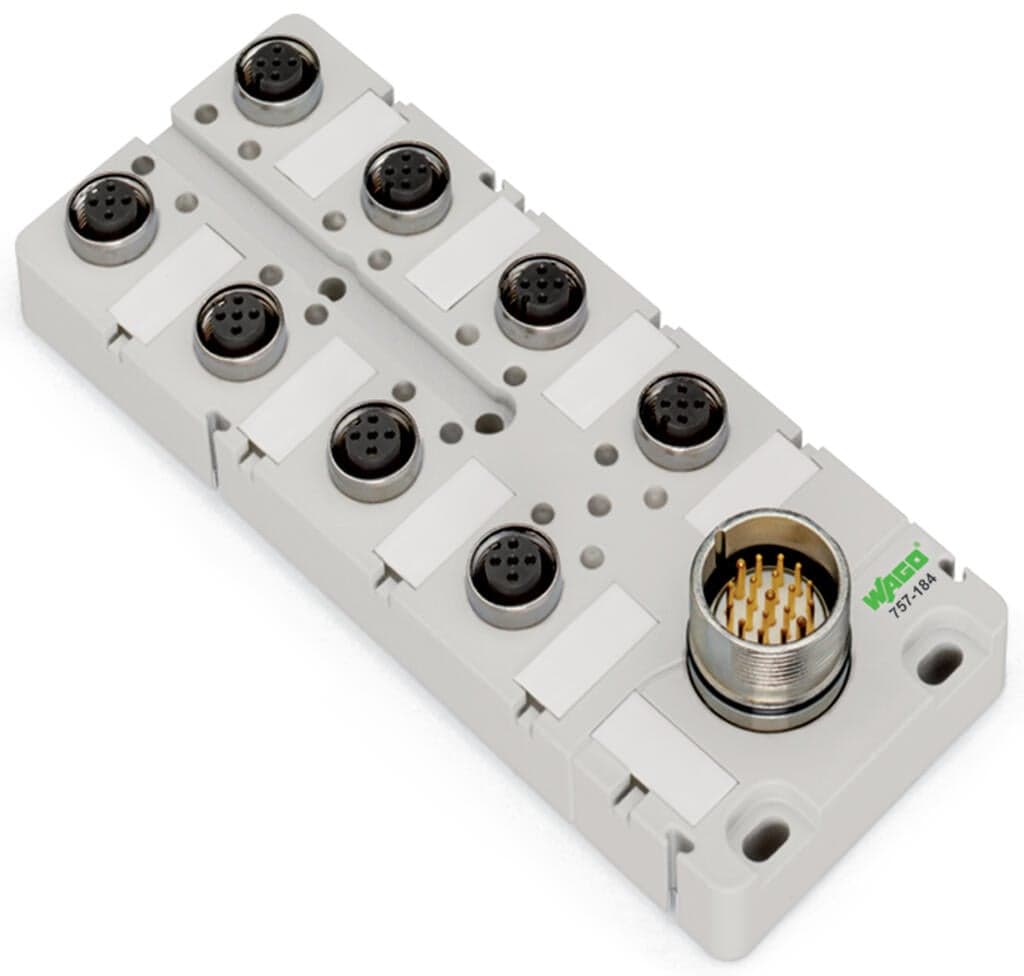

Product Model
757-184
Selling Points
- 1Durable Design: Constructed from PA 66 (UL 94 V0) material, ensuring high reliability and resistance to environmental factors.
- 2Versatile Connectivity: Equipped with 1 x M23 plug (12-pole) and 8 x M12 sockets (4-pole), including ground for secure connections.
- 3Enhanced Protection: IP67 rating for protection against dust and water, ensuring reliable operation in harsh environments.
- 4Efficient Indicators: Includes green LED operating indicator and yellow LED status indicator for easy monitoring.
- 5High Current Capacity: Supports up to 9 A of current for supply connections and 2 A for signal connections, making it suitable for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact resistance (max.) | 0.01Ω | Supply voltage | 10 … 30?VDC;?Rated voltage: 32 V ~ rms |
Current carrying capacity (signal connections) | 2A | Current carrying capacity (supply connections) | 9A |
Rated value of electrical isolation | 500V | Functionally separated potential groups | Kontakt/Kontakt |
Insulation resistance | >109Ω | Signal characteristics | PNP |
Indicators | LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status | Connection technology: inputs / outputs | 8 x M12 socket; 4-pole; incl. ground |
Connection technology: trunk cable | 1 x M23 plug; 12-pole | Width | 60?mm?/ 2.362?inches |
Height | 34?mm?/ 1.339?inches | Depth | 152?mm?/ 5.984?inches |
Mounting type | Screw mounting | Weight | 240g |
Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free | Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) | Ambient temperature (operation) | -25 … +80 °C |
Protection type | IP67 | Note on protection type | per EN 60529 (NEMA 6 & 6P) in fully locked position with its plugs or protective caps |
Pollution degree | 3 per VDE 0110 | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | Product Group | 23 (I/O passive and accessories) |
eCl@ss 10.0 | 27-44-01-11 | eCl@ss 9.0 | 27-44-01-08 |
ETIM 9.0 | EC003558 | ETIM 8.0 | EC003558 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821054313 | Customs tariff number | 8536698000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 57113334-c462-4e1e-b6d5-60bb3bafb959 | SCIP notification number (Belgium) | f4f96668-6f09-483a-90c6-528ae1ba61f5 |
SCIP notification number (Bulgaria) | f41c8ed2-20bd-4c96-8e95-85c241dcf184 | SCIP notification number (Czech Republic) | a533d49a-a102-48a6-aeb0-915bfb2d4635 |
SCIP notification number (Denmark) | 5e33223e-bd9b-44b7-b60c-2c67a94dc85d | SCIP notification number (Finland) | 358bdb95-e46a-4cf0-8676-cf3c9c104a8e |
SCIP notification number (France) | 41845d8b-bf7c-4d55-8d75-26b3e26a5860 | SCIP notification number (Germany) | 6c98dd7f-a8a1-402e-9320-84770dbbd1e7 |
SCIP notification number (Hungary) | 970141e7-2b94-4fb1-8b21-7de14a8eb954 | SCIP notification number (Italy) | de99d0ef-ad61-4430-9a5a-ea47750722f6 |
SCIP notification number (Netherlands) | 4d51a996-e114-41a2-8c44-8496e2709a97 | SCIP notification number (Poland) | 363af7be-20a9-4b28-9e3f-082c479052c8 |
SCIP notification number (Romania) | c7852c80-fc9f-47ba-9710-5cd9b083e72b | SCIP notification number (Sweden) | 0022180d-2cd1-437b-96c5-cd99568e1341 |
Specifications may be subject to change without notice
