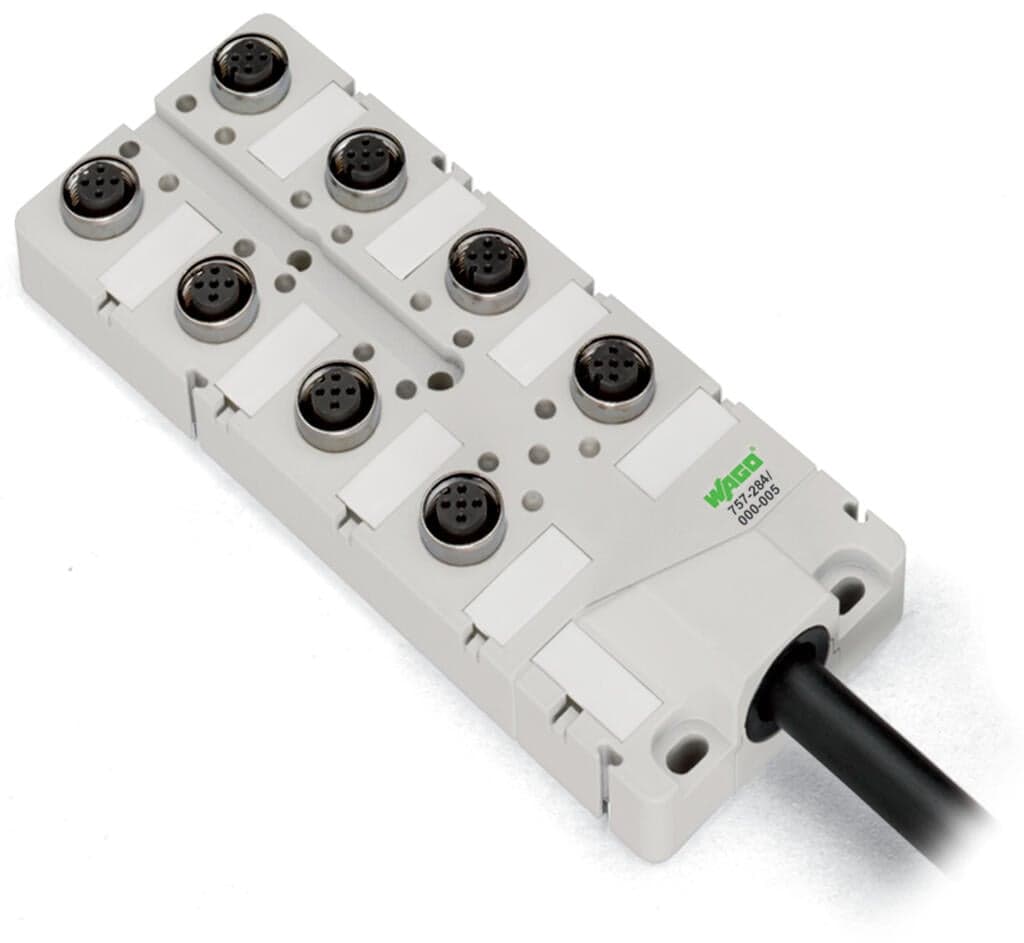

Product Model
757-284/000-005
Selling Points
- 1Flexible Application: Designed with a bending radius of 10 x cable diameter for flexible use.
- 2High Reliability: Features IP68 protection and a halogen-free design for durability.
- 3Versatile Connectivity: Equipped with 8 x M12 sockets and 1 x fixed connecting cable.
- 4Easy Installation: Screw mount design for straightforward mounting.
- 5Comprehensive Indicators: Includes green LED operating indicator and yellow LED status indicator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact resistance (max.) | 0.01Ω | Supply voltage | 10 … 30?VDC;?Rated voltage: 32 V ~ rms |
Current carrying capacity (signal connections) | 2A | Current carrying capacity (supply connections) | 9A |
Rated value of electrical isolation | 500V | Functionally separated potential groups | Kontakt/Kontakt |
Insulation resistance | >109Ω | Signal characteristics | PNP |
Indicators | LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status | Connection technology: inputs / outputs | 8 x M12 socket; 4-pole; incl. ground |
Connection technology: trunk cable | 1 x Fixed connecting cable | Length of connection cable | 5m |
Strip length | 100?mm?/ 3.94?inches | Wire colors | white, green, yellow, gray, pink, red, black, purple, green/yellow, brown, blue |
Cable design | Wire cross-section:?0.34?mm2;?Wire cross-section (2):?1?mm2 | Width | 60?mm?/ 2.362?inches |
Height | 26?mm?/ 1.024?inches | Depth | 152?mm?/ 5.984?inches |
Mounting type | Screw mounting | Weight | 748g |
Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free | Halogen-free | Yes |
Bending radius | 10 x cable diameter (min.) for flexible application | Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
Sheath material | PUR | Sheathed cable color | black |
Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) | Ambient temperature (operation) | -25 … +80 °C |
Ambient (operating) temperature (dynamic) | -5 … +80 °C | Ambient (operating) temperature (static) | -40 … +90 °C |
Protection type | IP68 | Note on protection type | 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps |
Pollution degree | 3 per VDE 0110 | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | eCl@ss 10.0 | 27-44-01-08 |
eCl@ss 9.0 | 27-44-01-08 | ETIM 9.0 | EC002585 |
ETIM 8.0 | EC002585 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454028466 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 122f9450-f0db-4b6b-9af8-a42c9de7c55a |
SCIP notification number (Belgium) | 40d27e24-724a-4ad1-ada4-905d00c936e5 | SCIP notification number (Bulgaria) | 68261e21-34b2-4de7-8739-2d28d6970b4d |
SCIP notification number (Czech Republic) | 6b87664f-d524-4dfd-b51d-73c17fb0c37f | SCIP notification number (Denmark) | 9b31dda5-5351-498e-be31-b60403315942 |
SCIP notification number (Finland) | 58d89936-8442-48ce-a5a1-9a9ed5b7f6c2 | SCIP notification number (France) | 62acc678-f2a7-4299-b63b-45139ae5a209 |
SCIP notification number (Germany) | bea86ebe-9649-49ae-875d-172a4173f526 | SCIP notification number (Hungary) | 0e9e0761-cfb1-4dc9-849a-28b6c8a52670 |
SCIP notification number (Italy) | ab37b7d7-a83a-4843-ab5f-1dc2b5adbf40 | SCIP notification number (Netherlands) | ecb2183c-7f3c-4994-b393-5ba002078372 |
SCIP notification number (Poland) | 7837e59e-91bc-4ce7-9507-92d0a357e22c | SCIP notification number (Romania) | 3979441d-b46c-4ce1-b1b2-2a3fdfa2b29c |
SCIP notification number (Sweden) | f904527e-3d4e-4b97-8c7f-7d068c7cec78 |
Specifications may be subject to change without notice
